Description
The 6M 130 is perfect for producers interested in a versatile, agile tractor with an efficient engine and a need to operate larger implements.

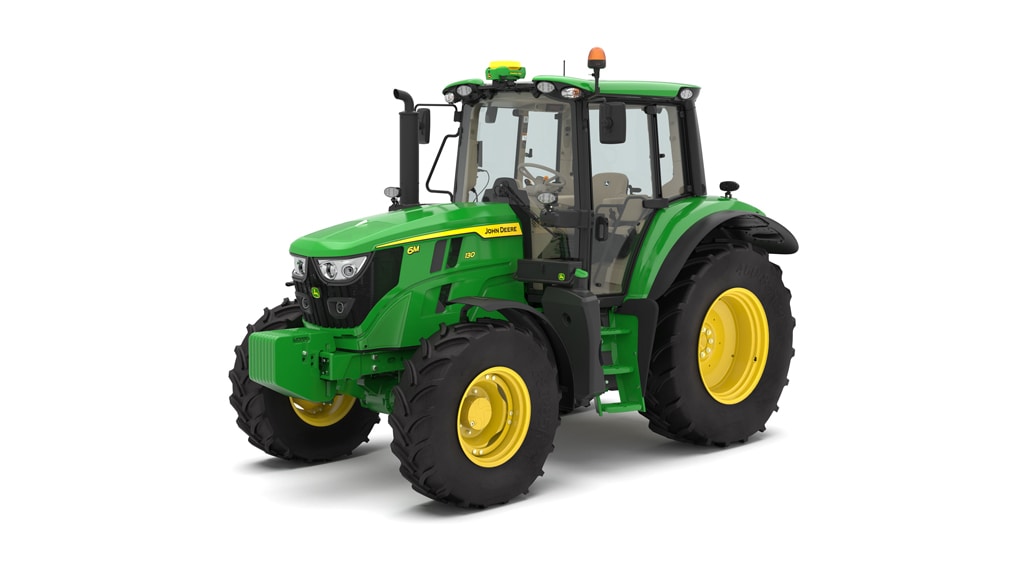

6M 130 | Utility Tractors
EquipmentJohn Deere
#6130M
Characteristics
- Engine HP: 143 Max | 130 Rated
- John Deere PowerTech™ PSS Engine
- Transmission Options: PQT, AQT, CQT, or IVT™
- Up to 20 HP Boost with IPM in non-stationary PTO and transport applications
Specifications
| Engine description | John Deere PowerTech™ PSS |
| Engine displacement |
4.5 L 275 cu in. |
| Rated engine power |
130 hp 96 kW |
| Maximum engine power |
143 hp 105 kW |
| Rated PTO power (hp SAE) |
100 hp 75 kW |
| Maximum PTO power |
At 1000 PTO rpm with IPM: 88 kW 118 hp |
| Transmission type |
Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
| Hydraulic pump rated output |
Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
| Rear hitch category (SAE designation) | 2/3N |
| Base machine weight |
6300 kg 13,889 lb |
| Description | John Deere PowerTech™ PSS |
| Engine type | 4045HL555 |
| Rated speed | 2100 rpm |
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series |
| Emission level | Final Tier 4 |
| After treatment type | Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) |
| Displacement |
4.5 L 275 cu in. |
| Rated power |
130 hp 96 kW |
| Rated PTO power (hp SAE) |
100 hp 75 kW |
| Maximum PTO power |
At 1000 PTO rpm with IPM: 88 kW 118 hp |
| Intelligent Power Management (IPM) |
Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp |
| Power boost | 10 percent |
| Maximum engine power |
143 hp 105 kW |
| Engine peak torque | 609 Nm |
| PTO torque rise | 40 percent |
| Type |
Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
| Reverser | Electronic left-hand reverser |
| Creeper | Optional |
| Type |
Standard: Pressure compensated (PC) Optional: Pressure-and-flow compensated (PFC) system with Load Sensing function |
| Pump rated output |
Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
| Number of rear selective control valves (SCVs) |
Standard: Two ISO couplers Optional: Two to four ISO couplers |
| Number of mid selective control valves (SCVs) | Up to three |
| Joystick SCV control | Mechanical/electrical |
| Remote control valves available | Standard |
| Hitch category (SAE designation) | 2/3N |
| Rear hitch lift capacity (SAE designation) |
Standard: Category 2/3N: 3600 kg 7930 lb Optional: Category 2/3N: 4100 kg 9031 lb |
| Maximum lift capacity behind lift points |
Standard: Category 2/3N: 5650 kg 12,445 lb Optional: Category 2/3N: 6400 kg 14,097 lb |
| Sensing type | Electronic at lower link |
| Rear axle differential lock | Electrohydraulically with oil-cooled clutch |
| Drawbar category | Category 2 |
| Maximum vertical load |
1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position |
| Type | Electrohydraulically operated, oil-cooled, multi-disc design |
| Engine rpm (at rated PTO speeds) |
540 PTO: 1977 rpm 1000 PTO: 1972 rpm |
| PTO actuation | In-cab switch and optional external fender-mounted remote control |
| Category | 3N |
| Electric power | Seven-pin electrical socket |
| Standard lift capacity |
At hook ends: 3300 kg 7269 lb |
| Front power take-off (PTO) | Electrohydraulically engaged with oil-cooled, multi-disc design |
| PTO speed | 1000 PTO: 1969 rpm |
| Type |
Standard: flange-type rear axle Optional: Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft (2550-mm/100.4 in.) Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft - short version (2286-mm/90.0 in.) mm mm Rack-and-pinion rear axle - 86-mm (3.39 in.) shaft (2438-mm/96.0 in.) |
| Final drive type | Three planetary gear reduction |
| Rear differential lock | Electrohydraulically with oil-cooled clutch |
| Type |
Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes |
| Front axle differential lock | Self-locking differential |
| Front | 380/85R24 |
| Rear | 460/85R34 |
| Type | Dynamic load sensing, hydrostatic, flow metering |
| Alternator size |
Standard: 14 V/125 amp Optional: 14 V/250 amp |
| Battery options |
Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr |
| Rollover protective structure, OOS |
Gearshift location - console/floor Console |
| Seat |
Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension |
| Cab suspension | Optional: Mechanical Cab Suspension (MCS) |
| Instructional seat | Optional |
| Display |
Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings |
| Radio | Standard: Standard AM/FM stereo |
| Inner cab volume |
3.0 m3 105.9 cu ft |
| dB(A) rating | 70 dBA |
| Cab glass area | 4.85 m2 |
| Wheelbase |
2580 mm 101.6 in. |
| Overall width |
2460 mm 96.8 in. (380/85R24 & 460/85R34) |
| Overall length |
4470 mm 176.0 in. (inc. weight bracket) |
| Overall height |
2840 mm 111.9 in. (380/85R24 & 460/85R34) |
| Front axle center |
462 mm 18.2 in. (ground clearance) |
| Approximate shipping weight, Open;Cab |
Cab: 6200 kg 13,669 lb |
| Base machine weight |
Front axle 2520 kg 5556 lb Rear axle 3780 kg 8333 lb 6300 kg 13,889 lb |
| Maximum permissible weight |
9500 kg 20,944 lb |
| Crankcase oil volume |
17 L 4.5 U.S. gal. |
| Fuel tank |
205 L 54.2 U.S. gal. |
| Diesel exhaust fluid (DEF) tank |
13.5 L 3.6 U.S. gal. |
| Cooling system |
22 L 5.8 U.S. gal. |
| Transmission-hydraulic system |
PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 53 L 14.0 U.S. gal. AutoPowr/IVT: 60.0 L 15.9 U.S. gal. |
| Interval for engine oil change | 500 hours |
| Interval for hydraulic/transmission oil change | 1500 hours |
| Interval for engine coolant change | 6000 hours |
| Loader | 620R |
| Lift capacity at full height |
MSL: 2246 kg 4951 lb NSL: 2468 kg 5442 lb |
| Maximum lift height |
MSL: 4.1 m 161.5 in. NSL: 4.0 m 158.4 in. |
| Guidance | Optional: AutoTrac™ with Universal Display |
| Telematic | Standard: JDLink™ |
| Remote diagnostics | Standard: JDLink™ |
| Country of manufacture | Germany |
| Date collected | 25-Jun-24 |
