Description
Seed for success with John Deere’s complete line of seeding equipment, including air drills, air hoes, and box drills, plus precision ag technology to maximize your productivity.

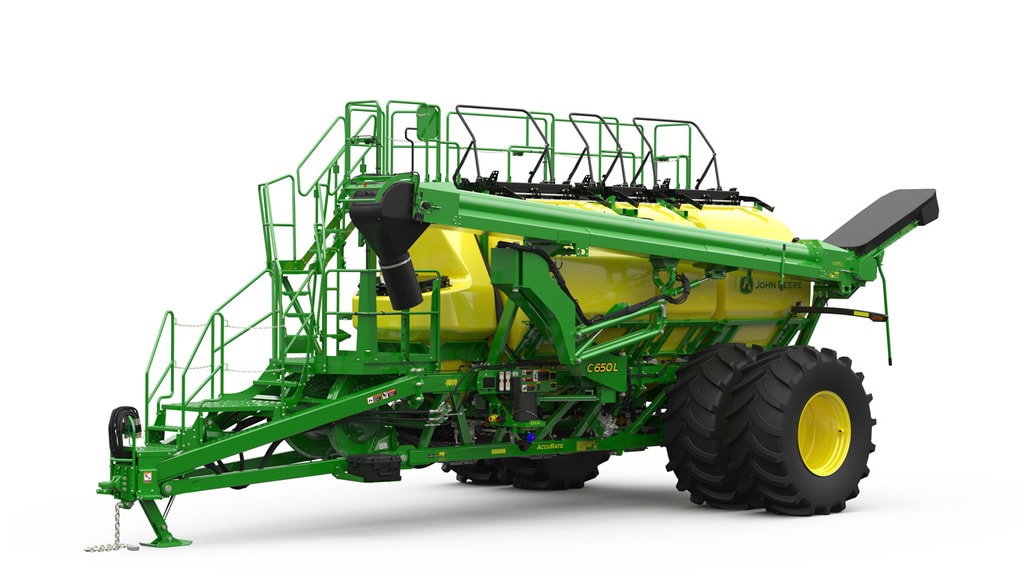

Seeding Equipment | C650L Leading Air Cart
EquipmentJohn Deere
#c650lh
Characteristics
- 22.9-cu m (650-bushel) capacity leading cart
- Seed up to eight times1 more precisely with the new AccuRate™ stainless steel electric meters
- Calibrate 45% faster2 than leading competitor calibration times with industry exclusive EZCal™ system
- Calibrate from the cab with ActiveCal™ and improve seeding confidence and productivity with tank scales
Specifications
| Tank splits |
1762 L 50 bu 4581.1 L 130 bu 7400.2 L 210 bu 9162.2 L 260 bu |
| Number of meters | 6 or 8 per tank |
| Meter housing material | Stainless steel |
| Type | Individual motor control per primary |
| Blower options | Standard capacity or high capacity |
| Number of Blowers | Single or dual |
| Height (Transport) |
4.05 m 13 ft 4 in. |
| Length Overall |
12 m 39 ft 5 in. |
| Width with high floatation tires |
6.62 m 21 ft 8 in. |
| shipping weight - High flotation option |
14,932 kg 31,176 lb |
| Total |
22,905.4 L 650 bu |
| Number of tanks | Four |
| Tank splits |
1762 L 50 bu 4581.1 L 130 bu 7400.2 L 210 bu 9162.2 L 260 bu |
| Liquid capable middle tank |
4800 L 1268 gal. |
| Conveyor belt width |
48.3 cm 19 in. |
| Conveyor tube diameter |
30.5 cm 12 in. |
| Conveyor capacity (wheat) |
3523.9 L/min 100 bu/min |
| Blower options | Standard capacity or high capacity |
| Number of Blowers | Single or dual |
| Max meter delivery rate per blower - high capacity blower |
459.55 kg/ha 410 lb per acre |
| Max meter delivery rate per blower - standard capacity blower |
386.7 kg/ha 345 lb per acre |
| Drive |
Hydraulic, per blower: up to 98.4 L/min 26 gpm |
| Product delivery hoses |
6.35 or 7.6 cm 2.5 or 3 in. |
| Number of meters | 6 or 8 per tank |
| Meter housing material | Stainless steel |
| Type | Individual motor control per primary |
| Drive | Electric: 56 V |
| Type | Hydraulic disc |
| Height (Transport) |
4.05 m 13 ft 4 in. |
| Height (Field) |
4.94 m 16 ft 3 in. |
| Length Overall |
12 m 39 ft 5 in. |
| Length (Hitch pin to axle) |
8.34 m 27 ft 4 in. |
| Width with base equipment tires |
6.16 m 20 ft 2 in. |
| Width with high floatation tires |
6.62 m 21 ft 8 in. |
| Width with 3M tire option |
3.72 m 12 ft 3 in. |
| Ground Clearance |
Empty: 58.4 cm 23 in. |
| Base equipment |
14,250 kg 29,671 lb |
| High flotation option |
14,932 kg 31,176 lb |
| 3M wheel tread option |
13,017 kg 27,404 lb |
| Rear tires |
Base equipment 800/70R38 SFT (Duals) High flotation option IF850/75R42 CFO/CHO (Duals) 3m Wheel tread option LSW 900/60R42 (Singles) |
| Date collected | 28-Feb-2024 |
