Description
The W260M is designed to meet your harvesting needs and productivity requirements.

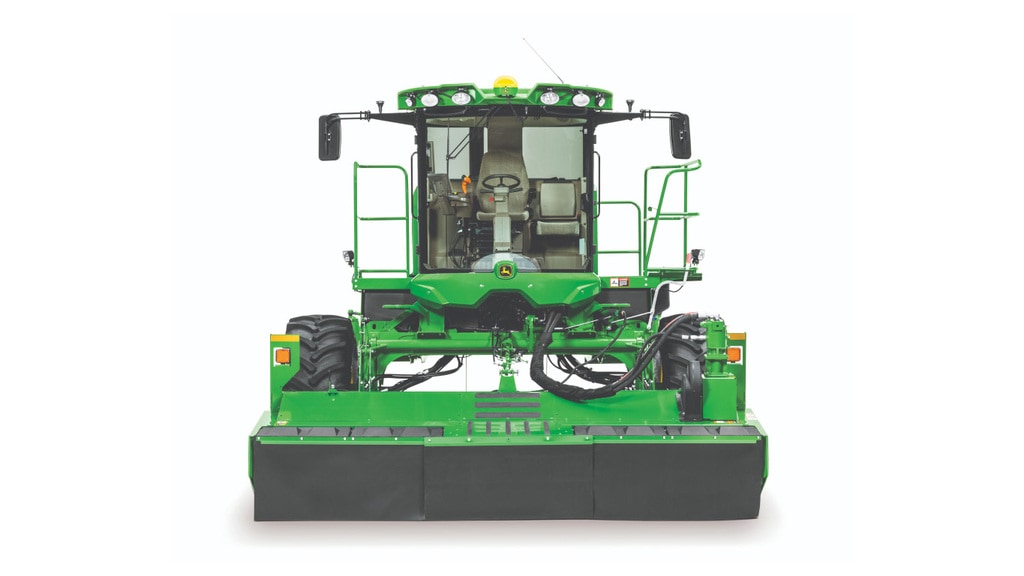

Mowing | W260M Windrower
EquipmentJohn Deere
#w260me
Characteristics
- 260 HP
- Integrated AutoTrac™ steering system helps maintain crop quality even at faster cutting speeds
- Optional Mowing Documentation in John Deere Operations Center ™
- Compatible with John Deere Merger Attachment
- JDLink™ enabled
Specifications
| Engine - Model | PowerTech™ PSS Final Tier 4 |
| Horsepower |
At 2,400 rpm: 193 kW 260 hp |
| Ground drive - Type | Two-speed hydrostatic |
| Fuel - Capacity |
568 L 150 U.S. gal. DEF: 26.5 L 7 U.S. gal. |
| Low range |
With two speed: 24.1 km/h 15 mph |
| High range 2 speed / Mid range 3 speed |
With two speed: 38.4 km/h 24 mph |
| Vehicle | Standard width stance with suspended rear axle in base |
| Seat | Air suspension |
| Under frame clearance |
1120 mm 44 in. |
| Weight - Total |
6998 kg 15,428 lb |
| Model | PowerTech PSS Final Tier 4 |
| Horsepower |
At 2,400 rpm: 193.9 kW 260 hp |
| No. of cylinders | Six |
| Exhaust direction | Vertical |
| Engine displacement |
6.8 L 415 cu in. |
| Engine speeds |
Low idle 900 rpm Variable idle Electronic adjustable from 1,700 to 2,450 rpm High idle (no load) 2,450 rpm Rated speed 2450 rpm |
| Oil crankcase capacity (with filter) |
31.4 L 33.2 U.S. qt |
| Cooling system |
49.2 L 52 U.S. qt |
| Type | Base: Two-speed hydrostatic |
| Number of pumps (Rotary/Auger) | One |
| Number of motors (Rotary/Auger) | One |
| Pump displacement |
115 cc 7.02 cu in. |
| Motor displacemen |
Per revolution: 75.4 cm3 Per revolution: 4.6 cu in. |
| Type | Hydraulic piston accumulator |
| Type | Direct drive heavy-duty wheel motors |
| Type / Activation |
Manual parking brake engage button on armrest Parking brake automatically engages and disengages; integrated into multi-function lever |
| Reservoir capacity |
94.5 L 25 U.S. gal. |
| Capacity |
568 L 150 U.S. gal. DEF: 26.5 L DEF: 7 U.S. gal. |
| Alternator | 240 amp |
| Battery | Heavy-duty 12 V |
| Drive wheel standard | 620/75R26 Bar |
| Drive wheel option |
Hybrid tires: 480/80R34 Radial button: 23.1R26 R3 |
| Caster wheels | 14Lx16.1 8-ply ribbed |
| Low range |
With two speed: 24.1 km/h 15 mph |
| High range 2 speed / Mid range 3 speed |
With two speed: 38.4 km/h 24 mph |
| Vehicle | Suspended rear axle in base |
| Cab | Air-ride seat suspension for smooth ride |
| Construction | Uni-body, welded |
| Glass |
5.45 m2 58.7 sq ft |
| Seat | Air suspension |
| Steering column | Dual-tilt telescoping |
| Instructional seat | Standard |
| Windshield wiper | Single blade |
| Air conditioner |
Refrigerant R134a Capacity 2.5 kg 5.5 lb Filters Dry type, reusable Compressor Rotary Overload protection Low-pressure and high-pressure cut off Standard with manual temperature control |
| Front | Six halogen |
| Side | Four optional |
| Back | Standard: Two halogen |
| Type |
Electronic touchsceen: 21.4 cm 8.4 in. |
| Overall length without platform |
5,900 mm 225.5 in. |
| Overall height |
3,760 mm 148 in. |
| Under frame clearance |
1,120 mm 44 in. |
| Wheelbase |
3710 mm 146 in. |
| Track width |
3400 mm 133 in. |
| Front axle |
4370 kg 9636 lb |
| Rear axle |
2627 kg 5792 lb |
| Total |
6998 kg 15,428 lb |
| Manufacturer's warranty |
Full machine: 1 year Engine: 2 year; 2,000 hours |
