Description
DB44 Planter from John Deere. Learn more about the features, specifications, and more for the DB44 Planter.

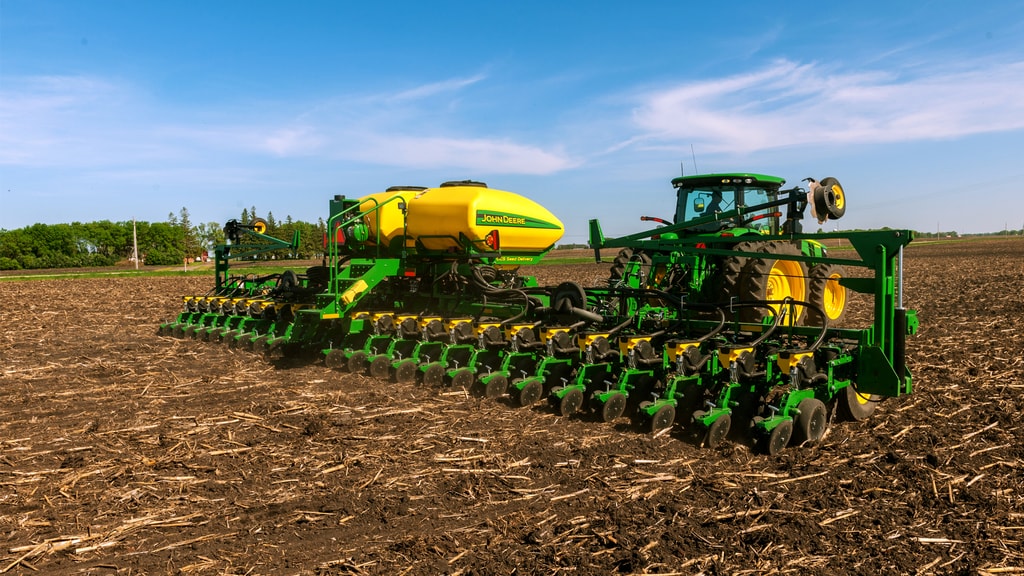

Home / Equipment / Planting Equipment | DB44 24Row22 Planter
DB44 Planter from John Deere. Learn more about the features, specifications, and more for the DB44 Planter.
| Number of rows | 24 |
| Row spacing |
55.9 cm 22 in. |
| Frame - Fold configuration | 3-section front-fold |
| Frame - Flexibility |
Up: 15 degree (angle) Down: 15 degree (angle) |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters |
Base Vacuum |
| Number of rows | 24 |
| Row spacing |
55.9 cm 22 in. |
| Fold configuration | 3-section front-fold |
| Flexibility |
Up: 15 degree (angle) Down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base |
Center frame tires: 400/500-R22.5: 552 kPa 5.5 bar (80 psi) Center frame tires: 600/50R22.5: 379 kPa 3.8 bar (55 psi) 14-ply Center frame tires: 31-13.5x15 621 kPa 6.2 bar (90 psi) Center frame tires (DB66 and smaller planters): 445/50R22.5: 517 kPa (5.2 bar) [75 psi) 6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi] 6-ply wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi] |
| Type |
ExactEmerge™ row units or MaxEmerge 5e row units |
| Opener | Tru-Vee double disk |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Row unit down force | Active Pneumatic Downforce or Individual Row Hydraulic Downforce |
| Base | Vacuum |
| Central Commodity System |
Seed capacity 4581 L 130 bu |
| Base | Variable rate motors |
| Type | Automatic alternating or independent control |
| Base | SeedStar™ electronic system |
| Tank capacity |
1590 L 420 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) |
4.3 m 14 ft |
| Transport length |
11.3 m 37 ft |
| Transport height |
3 m 10 ft |
| Transport weight |
Average frame empty weight: 9,344 kg 20,600 lb |
| Transport underframe clearance |
55.9 cm 22 in. |
| Recommended tractor horsepower |
Minimum tractor required: 175.2 kW 235 hp Equipped with Category 4 drawbar |
| Recommended tractor hydraulics |
Tractor standby pressure: 15,500 kpa 155 bar (2300 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
