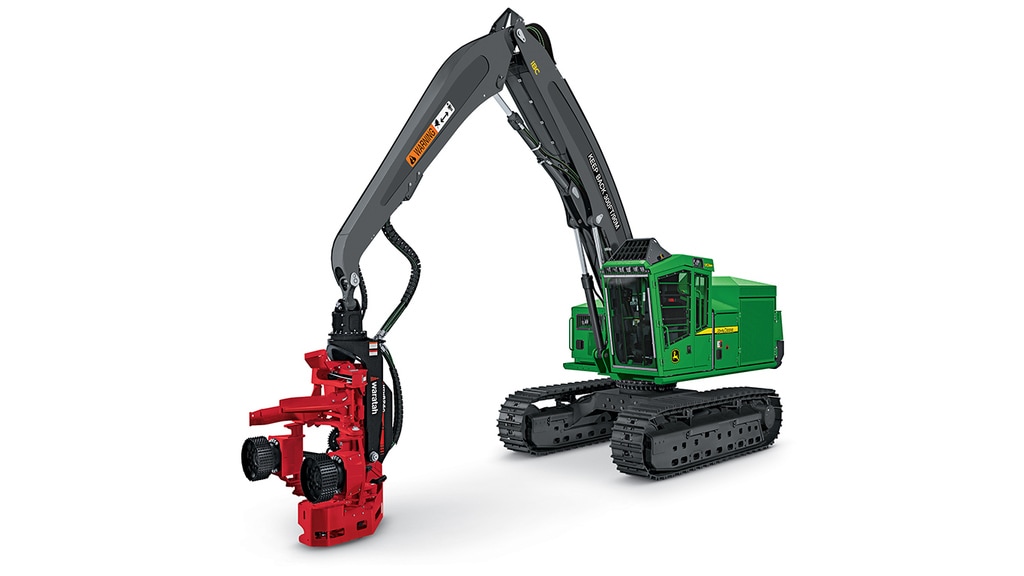

953MH | Tracked Harvester

Equipment
John Deere
#953mht

Disclaimer |

Characteristics

  • Net Power: 246 kW (330 hp) at 1,900 rpm
  • Max. Boom Reach: 10.34 m (33 ft. 11 in.)
  • Tractive Effort: 322 kN (72,300 lbf)

Note that this product is available in store only.
Get pre-approved for financing
SKU: 953mht Category: ,

Description

When you’ve got a tough job to do, we’re proud to say our 953MH Tracked Harvester fits the bill. View specs and compare the 953MH to the competition.

Specifications

Engine Manufacturer John Deere
Engine Model PowerTech Plus 6090 PSS
Displacement, ltr (Inches³) 9 (549)
Rated Speed, rpm 1900
Engine Output, kW (hp) 246 (330)
Engine Torque, Nm (lbf / ft) 1392 (1027)
Carrier Rollers - Each Side 2
Track Rollers - Each Side 9
Track Shoe Width, mm (inches) 610 (24)
Height Over Cab, mm (ft/in) 3550 (11 ft 8 in)
Width, mm (ft/in) 3050 (10 ft )
Overall Track Length, mm (ft/in) 4900 (16 ft 1 in)
Track Length On Ground, mm (ft/in) 3830 (12 ft 7 in)
Tailswing Radius, mm (ft/in) 3180 (10 ft 5 in)
Ground Clearance, mm (ft/in) 756 (2 ft 6 in)
Superstructure Width, mm (ft/in) 3050 (10 ft )
Slewing Angle, Degrees 360
Fuel Tank, ltr (gallons (US)) 1080 (285)
Number of Alternators 2
Alternator Output, Amp 100
Slew Speed, rpm 4.8
Travel Speed, kph (mph) 4.2 (2.6)
Reference Harvesting Head Waratah HTH624C
Felling Diameter, mm (inches) 810 (31.9)
Delimbing Diameter, mm (inches) 760 (29.9)
Cutting Radius - Maximum, mm (ft/in) 9120 (29 ft 11 in)
Cutting Radius - Minimum, mm (ft/in) 3680 (12 ft 1 in)
Cutting Swath Horizontal, mm (ft/in) 5440 (17 ft 10 in)
System Voltage, V 24
Main Pump Axial Piston
Pump Flow, lt/min (gallons (US) / min) 532 (141)
Operating Weight, kg (lbs) 36484 (80448)
Weight - With Reference Head, kg (lbs) 36484 (80448)
Weight - Without Reference Head, kg (lbs) 33024 (72818)
