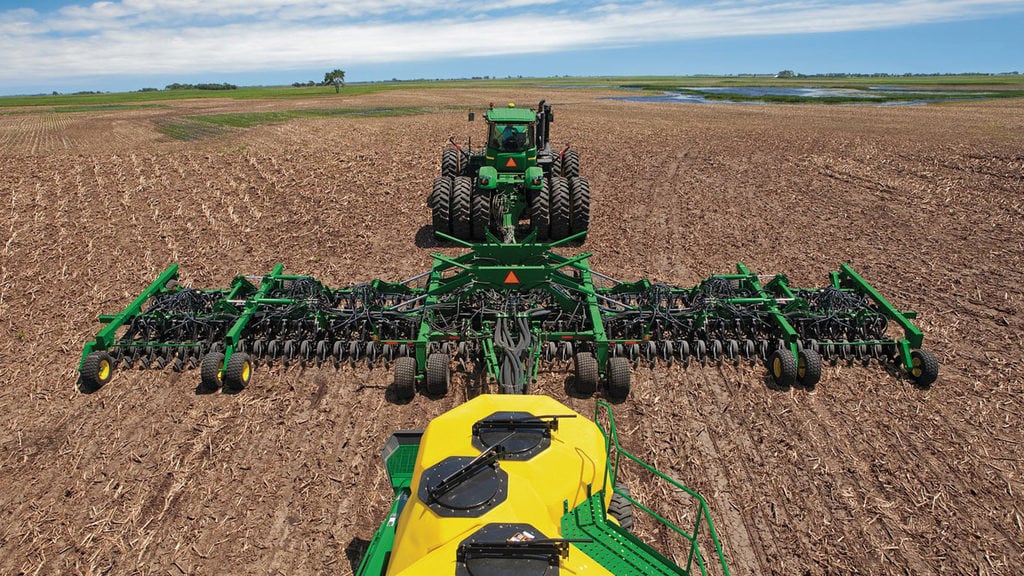

N536 No-Till Air Drill Air Seeding from John Deere. Learn more about the features, specifications, and more for the N536 No-Till Air Drill Air Seeding.
Home / Equipment / Seeding Equipment | N536 No-Till Air Drill
N536 No-Till Air Drill Air Seeding from John Deere. Learn more about the features, specifications, and more for the N536 No-Till Air Drill Air Seeding.
Working widths |
10.97 m 36 ft |
Spacing |
19.05, 25.4 cm 7.5, 10 in. |
Number of ranks | two |
Openers |
Style Single disk-beveled edge Rank lock-up Yes Diameter 45.72 cm 18 in. Down pressure Hydraulic |
Working widths |
10.97 m 36 ft |
Spacing |
19.05, 25.4 cm 7.5, 10 in. |
Number of ranks | Two |
Number of sections | Three |
Transport height |
4.55 m 14.92 ft |
Transport width |
4.37 m 14.33 ft |
Road clearance |
21.6 cm 8.5 in. |
Overall length |
7.5 m 24.58 ft |
Weight before ballast |
9305, 8210 kg 20514, 18100 lb |
Available ballast |
1386 (28+14 x 100) kg 2800 (28+14 x 100) lb |
Frame |
Cross members 10.2 x 15.2 cm 4 x 6 in. End tubes 5.1 x 15.2 cm 2 x 6 in. Hitch 7.6 x 15.2 cm 3 x 6 in. |
Clearance from rank to rank |
133.99 cm 52.75 in. |
Mainframe standard | (8) 11L-15, 10PR |
Wings standard | (4) 11L-15, 8PR |
Style | Single disk-beveled edge |
Rank lock-up | Yes |
Disk |
Diameter 45.72 cm 18 in. Angle 7 degree (angle) |
Down pressure |
Style Active hydraulic-patented Hydraulic |
Depth control |
Description Gauge wheel beside disk Gauge wheel size 11.43 x 40.64 or 7.62 x 40.64 cm 4.5 x 16 or 3 x 16 in. Range 1.27 to 8.89 cm 0.5 to 3.5 in. Increments 0.64 cm 0.25 in. |
In-Furrow press wheel |
Material Rubber on plastic wheel Packing force 2.3 to 21 kg 5 to 45 lb Standard |
Furrow closing |
Description Trailing wheel on 20-degree vertical angle, 7-degree horizontal angle Size 2.54 x 30.48 cm 1 x 12 in. Material Cast iron Down force 12 to 20 kg 26 to 43 lb Standard |
