Description

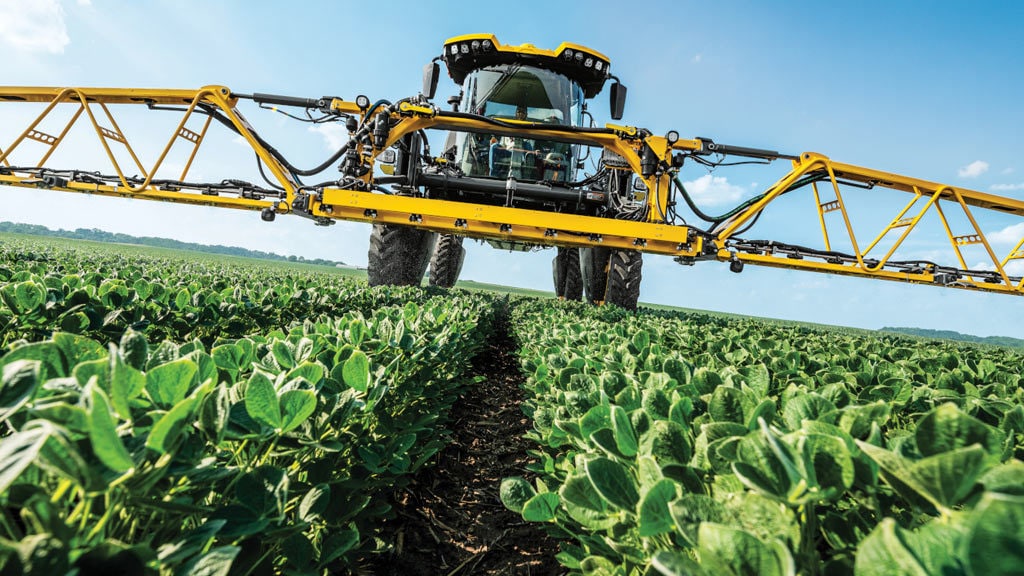

The STS12 Self-Propelled Sprayer has a 4542-L (1200-gal.) stainless-steel solution tank that continues a long standing tradition of offering full season application solutions to today’s applicator.
Home / Equipment / Sprayers | STS 12 Hagie™ Self-Propelled Sprayer
Sprayers | STS 12 Hagie™ Self-Propelled Sprayer
EquipmentJohn Deere
#st12sxf
Characteristics
- 1200-US gallon (4,543 L) tank
- Up to 132-foot (40.23 m) boom
- 300 hp, 9.0 L engine
- 56.3 km/h transport speed
SKU: st12sxf
Categories: Equipment, Equipment, Hagie STS Sprayers, Sprayers & Applicators, Hagie STS Sprayers, Sprayers & Applicators
Specifications
| Solution system - Capacity |
4400 L 1200 gal. |
| Rinse tank capacity |
605 L 160 gal. |
| Boom length options/Material |
Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m 60/90, 60/100, 60/120, or 70/132 ft |
| Spray speed range |
0.8 to 40 km/h 0.5 to 25 mph |
| Transport speed, maximum |
56 km/h 35 mph |
| Suspension | Independent air-ride |
| Crop clearance with standard tires |
188 cm 74 in. |
| Total weight (empty solution tank) |
11,906.4 kg 31,900 lb |
| Rated engine power |
221 kW 300 hp |
| Emissions | Final Tier 4 (FT4) |
| Number of cylinders | Six |
| Displacement |
9 L 548 cu in. |
| Alternator | 300 amp |
| Fuel tank capacity |
492 L 130 gal. |
| Diesel exhaust fluid (DEF) tank capacity |
29 L 7.7 gal. |
| Capacity |
4400 L 1200 gal. |
| Tank material | Stainless steel |
| Rinse tank capacity |
454 L 120 gal. |
| Quick fill size |
7.6 cm 3 in. |
| Automatic section control | Optional |
| Solution system control | PowrSpray™ system |
| Fill location |
Standard: Side Optional: Front |
| Chemical injection method | Optional: Raven Sidekick |
| Chemical eductor | Optional |
| Chemical eductor capacity (size) |
19 L 5 gal. |
| Flow meter size |
5.8 cm 2 in. |
| Pressure strainer | 50 mesh |
| Boom strainer | Standard 80 mesh |
| Boom length options |
Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m 60/90, 60/100, 60/120, or 70/132 ft |
| Automatic boom height | NORAC® UC7™ with Active Wing Roll (AWR) |
| Plumbing material | Stainless steel |
| Ground height adjustment | 58 to 272 cm 23 to 107 in. |
| Breakaway width |
For 27-m (90-ft) booms: 1.5 m 5 ft For 18/30 or 18/36 (60/100 or 60/120 ft): 3 m 10 ft For 40-m (132-ft) booms: 3.3 m 11 ft |
| Boom sections |
On 27-m (90-ft) boom: 7 sections On 30-, 36-, and 40-m (100-, 120-, and 132-ft) booms: 9 sections m (100, 120 and 132 ft) |
| Type | CommandDrive™ |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Infinitely variable - Operator programmable |
| Hydraulic reservoir capacity |
113.5 L 30 gal. |
| Spray speed range |
0.8 to 40 km/h 0.5 to 25 mph |
| Transport speed, maximum |
56 km/h 35 mph |
| Dry compatible | Montag® Fortifier |
| Suspension | Independent air-ride |
| Crop clearance with standard tires |
188 cm 74 in. |
| Front tires | VF320/105R54, VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50 |
| Rear tires | VF320/105R54, VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50 |
| Flotation tires | VF480/80R50, VF 620/70R46, IF710/65R46 |
| Hydraulic tread adjust | Standard |
| Wheel tread spacing |
305 to 406 cm 120 to 160 in. |
| Wheel base |
386 cm 152 in. |
| Turning radius |
With all-wheel steer (AWS) on: 5.3 m 17.3 ft With AWS off (center of outside tire): 7.8 m 25.6 ft |
| Parking brake | Integrated in final drives |
| Primary brakes | Drive system dynamic braking |
| Ladder raise/lower | Hydraulic |
| Total weight with 90-ft boom |
14,333.5 kg 31,600 lb |
| Total weight with 100-ft boom |
14,288 kg 31,500 lb |
| Air compressor | Onboard air |
| Date collected | 1 March 2021 |
