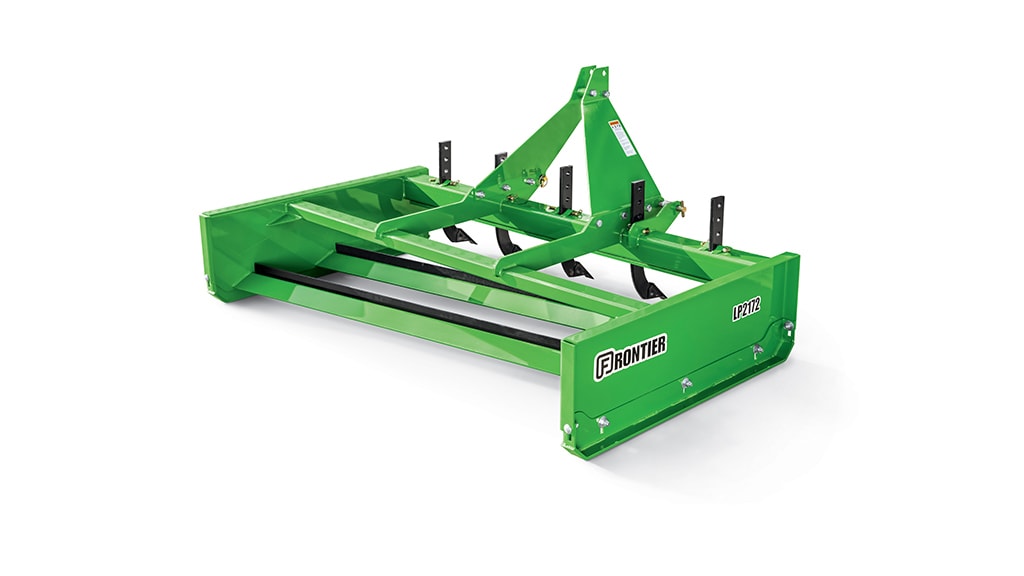

From light utility work to heavy grading, the wide line of Frontier LP21 Land Planes are designed for maximum versatility and performance.
Spring promo is now! Use Promo Code
PROMO10 and PROMO12Home / Equipment / Attachments Accessories and Implements / Landscaping Equipment | Frontier LP21 Land Planes
From light utility work to heavy grading, the wide line of Frontier LP21 Land Planes are designed for maximum versatility and performance.
Working width |
LP2054L: 137.2 cm 54 in. LP2160: 152.4 cm 60 in. LP2172: 182.9 cm 72 in. LP2184: 213.4 cm 84 LP2196: 243.8 cm 96 |
Overall Width |
LP2054L: 147.3 cm 58 in. LP2160: 165.1 cm 65 in. LP2172: 193.0 cm 76 in. LP2184: 223.5 cm 88 in. LP2196: 254.0 cm 100 in. |
Overall Height |
LP2054L: 83.8 cm 33 in. LP2160: 88.9 cm 35 in. LP2172: 88.9 cm LP2184: 88.9 cm LP2196: 88.9 cm |
Overall Length |
LP2054L: 121.9 cm 48 in. LP2160: 121.9 cm LP2172: 121.9 cm LP2184: 137.2 cm 54 in. LP2196: 137.2 cm |
Height to Hitch Pins |
LP2054L: 35.6 cm 14 in. LP2160: 40.6 cm 16 in. LP2172: 40.6 cm LP2184: 40.6 cm LP2196: 40.6 cm |
Operating |
LP2054L: 143.3 kg 316 lb LP2160: 219.5 kg 484 lb LP2172: 239.5 kg 528 lb LP2184: 276.7 kg 610 lb LP2196: 296.2 kg 653 lb |
Shipping |
LP2054L: 308.4 kg 680 lb LP2160: 461.8 kg 1018 lb LP2172: 501.7 kg 1106 lb LP2184: 553.4 kg 1220 lb LP2196: 615.1 kg 1356 lb |
Required PTO horsepower |
LP2054L: 13.4-22.4 kW 18-30 hp LP2160: 18.6-37.3 kW 25-50 hp LP2172: 18.6-37.3 kW LP2184: 29.8-67.1 kW 40-90 hp LP2196: 29.8-67.1 kW |
Style | All:Clevis w/ Pin |
3-point compatibility |
LP2054L: Cat 1 Limited LP2160: Cat 1 LP2172: Cat 1 LP2184: Cat 1 and 2 LP2196: Cat 1 and 2 |
Quick-coupler compatible (Cat. 2) | All:Yes |
Type | All:High Carbon Heat Treated Blades |
Reversible | All:Yes |
Replaceable | All:Yes |
Quantity | All:Two |
Size, in. (cm) |
All:0.95x15.2 cm 0.375x6 in. |
Placement | All:Blades Positioned at a 10 Degree Angle |
Configuration | All: Infinitely adjustable |
Thickness |
LP2054L: 0.635 cm 0.25 in. LP2160: 0.95 cm 0.375 in. LP2172: 0.95 cm LP2184: 0.95 cm LP2196: 0.95 cm |
Height adjustment range |
All:6.35 cm 2.5 in. |
Configuration | All:One unit |
Time period | All:1 year |
Adjustable |
LP2054L: 3 Position LP2160: 4 Position LP2172: 4 Position LP2184: 4 Position LP2196: 4 Position |
Heat treated | All:Yes |
Quantity |
LP2054L: 4 LP2160: 4 LP2172: 5 LP2184: 6 LP2196: 7 |
Scarifier Depth Range |
LP2054L: 0 cm 0 in. , -3.81 cm -1.5 in., -7.62 cm -3 in. LP2160: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2172: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2184: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. LP2196: 5.08 cm 2 in. , 0 cm 0 in. , -5.08 cm -2 in. , -10.16cm -4 in. |
