Description
John Deere Front Mowers are commercial-quality mowing products that are ideal for the large-area commercial/institutional, golf and turf markets

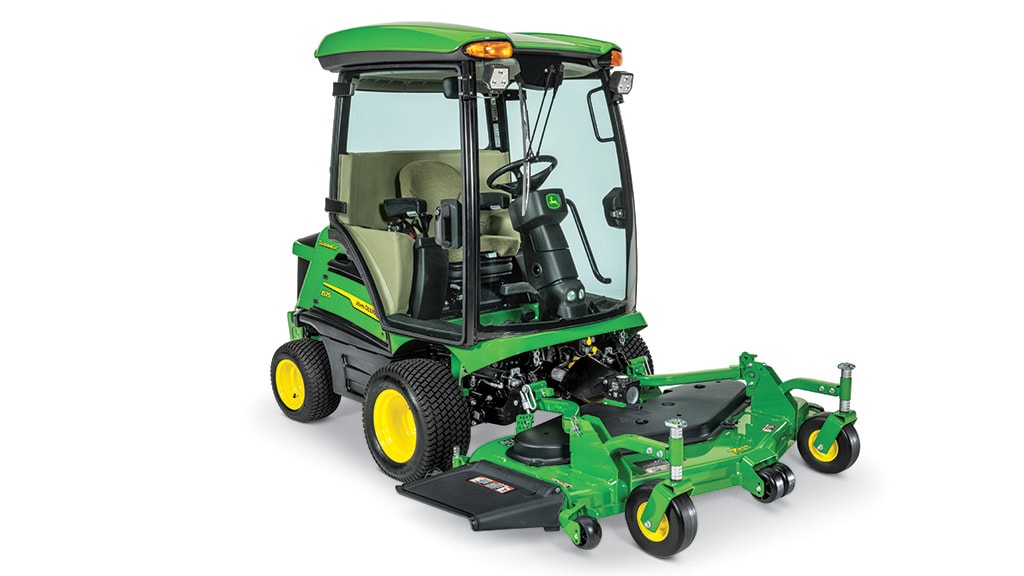

Home / Equipment / Commercial Mower / Front and Wide Area Mowers / Front Mower | 1575 TerrainCut™
John Deere Front Mowers are commercial-quality mowing products that are ideal for the large-area commercial/institutional, golf and turf markets
Engine Manufacturer/model | 3TNV88C |
Engine Power |
Gross PS: 37.4 hp 27.5 kW |
Fuel tank capacity |
16 U.S. gal. 60.6 L |
Mower deck Size |
60, 72 in. 152, 183 cm |
Blade tip speed |
18,000 fpm 5,486 m/min |
Transmission | Hydrostatic full time 4WD, on-demand |
Speed range |
0-12 mph 0-19.3 km/h |
Drive wheels | 23x10.5-12 |
Caster wheels | Flat free, 11x4-5 |
Warranty | 24 months |
Manufacturer/model | 3TNV88C |
Power |
Gross PS, 37.4 hp 27.5 kW |
Rated engine rpm | 3,000 rpm |
Cylinders | Three |
Displacement |
100.2 cu in. 1.64 L |
Maximum torque |
At 1,950 rpm, 80.4 lb-ft 109 Nm |
Injection | Direct |
Fuel type | Diesel (B20 compatible) |
Fuel tank capacity |
16 U.S. gal. 60.6 L |
Cooling | Liquid |
Cooling capacity |
10 U.S. qt 9.5 L |
Air cleaner | Dual element dry type |
Air restriction indicator | Standard |
Charging system | Automotive type |
Alternator, amp | 95 amp |
Battery | 12 V |
Transmission | Hydrostatic full time 4WD, on-demand |
Speed and direction control | Two-pedal foot |
Cruise control | Optional |
Hi/Lo range | No, single speed transmission |
Hi forward |
0-8 mph 0-12 km/h |
Type | Open center |
Pump capacity |
5.1 U.S. gpm 19.3 L/min |
Spool valve | Front lift, standard |
Lift cylinders | Two |
Type | Hydraulic cylinder |
Turns lock-to-lock | 2 maximum, 1.5 minimum |
Type | Internal wet disk |
Individual turn brakes | Standard |
Master brake | Standard, locking |
Warranty | 24 months |
Drive wheels | 23x10.5-12 |
Steering | 18x8.5-10 |
Type | Optional hydraulic |
Wheelbase |
49.2 in. 125 cm |
Ground clearance |
6.5 in. 16.5 cm |
Length |
Less mower deck, 86.7 in. 220.2 cm |
Overall width |
With 23x10.5 tires, wide stance, 58 in. 147.3 cm |
ROPS | Factory installed ComfortCab™ |
ROPS certification | 2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 |
Overall height with ROPS |
With cab, 83.9 in. 213 cm |
Shipping weight |
Net weight, without mower or fuel, 2,436 lb 1,105 kg |
Construction | One-piece stamped steel; 7-Iron PRO |
Deck thickness |
7 gauge 0.18 in. 4.6 mm |
Size |
60, 72 in. 152, 183 cm |
Deck offset | Yes |
Cutting height |
1-6 in. 2.54-15.24 cm |
Belt tensioning | Spring loaded |
Blade tip speed |
18,000 fpm 5,486 m/min |
Caster wheels |
Type Flat free Size 11x4-5 |
Front anti-Scalp rollers | Yes, gauge wheels |
Rear anti-scalp rollers | Yes, gauge wheels |
Cutting width |
62, 72 in. 157, 183 cm |
Cutting height |
1-6 in. 2.54-15.24 cm |
Caster wheels |
Type Flat free Size 11x4-5 |
Date collected | 21-June-2019 |
