Description
Discover the available TR Trenchers attachments for John Deere compact construction equipment.
Home / Equipment / Compact construction equipment / Construction implements /

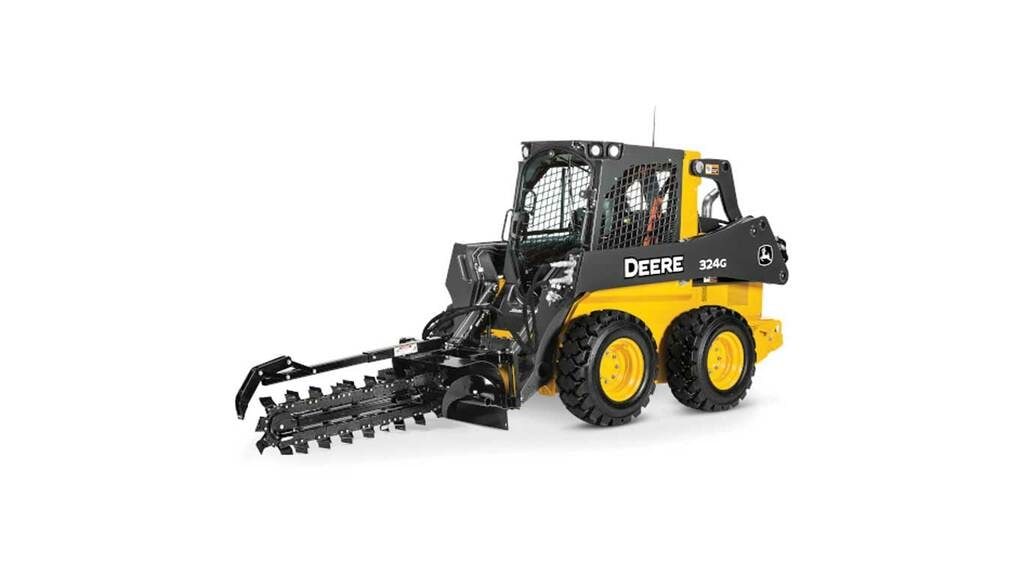

TR Trenchers
Construction implementsJohn Deere
#tr36bt
Characteristics
TR models are designed for:
- Higher-duty cycles in commercial or heavy-construction applications.
- Heavy-duty planetary-drive design leverages greater hydraulic horsepower from high-flow hydraulics.
Specifications
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech EWL 4045HL050 |
| Displacement, ltr (Inches³) | 4.5 (276) |
| Rated Speed, rpm | 1600 |
| Engine Output - Net, kW (hp) | 77 (103) |
| Transmission Type | Power Shift |
| Service Brake Type | Wet Disc |
| Service Brake Actuation | Hydraulic w/Power Assist |
| Max length with std. Stick, mm (ft/in) | 5960 (19 ft 7 in) |
| Max length with ext. Stick, mm (ft/in) | 5960 (19 ft 7 in) |
| Height over std Stick, mm (ft/in) | 3710 (12 ft 2 in) |
| Height over ext Stick, mm (ft/in) | 3710 (12 ft 2 in) |
| Maximum Width, mm (ft/in) | 2430 (8 ft ) |
| Width over tires, mm (ft/in) | 2260 (7 ft 5 in) |
| Wheelbase - 4WD, mm (ft/in) | 2190 (7 ft 2 in) |
| Ground Clearance, mm (inches) | 351 (14) |
| Width - General Purpose Bucket, mm (ft/in) | 2184 (7 ft 2 in) - HD |
| Bucket Rotation - Position 1, Degrees | 190 |
| Bucket Pin Height - General Purpose, mm (ft/in) | 3450 (11 ft 4 in) |
| Dump Height - General Purpose, mm (ft/in) | 2750 (9 ft ) - HD |
| Dump Reach - General Purpose, mm (inches) | 743 (29.2) - HD |
| Digging Depth - General Purpose, mm (inches) | 89 (3.5) - HD |
| Fuel Tank, ltr (gallons (US)) | 128.7 (34) |
| Hydraulic Tank, ltr (gallons (US)) | 45 (11.9) |
| Capacity Heaped - Bucket 1, m³ (ft³) | 0.21 (7.5) |
| Bucket Capacity - Standard General Purpose, m³ (yd³) | 0.77 (1) |
| Bucket Tearout - Non-Extending Dipper, kN (lbf) | 55 (12361) |
| Stick tearout, kN (lbf) | 36.6 (8231) |
| Boom Lift - Maximum Reach - Non-Extending Dipper, kg (lbs) | 1744 (3846) |
| Bucket Breakout - General Purpose, kN (lbf) | 49.2 (11060) |
| Lift To Full Height - General Purpose Bucket, kg (lbs) | 3456 (7619) |
| Pump | Gear Pump - Tandem |
| Pump Flow, lt/min (gallons (US) / min) | 136 (36) |
| Operating Weight, kg (lbs) | 8182 (18038) |
