Description

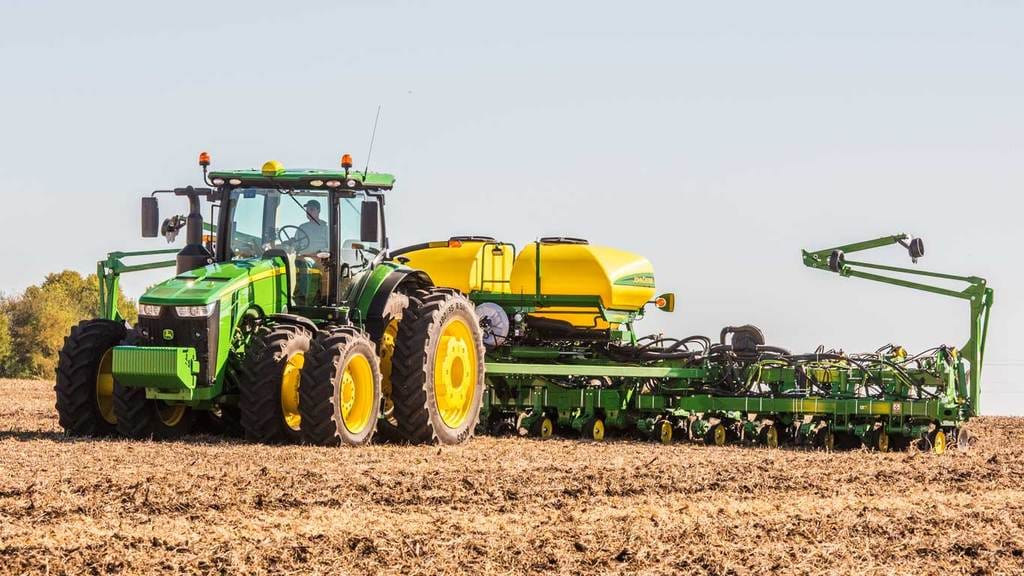

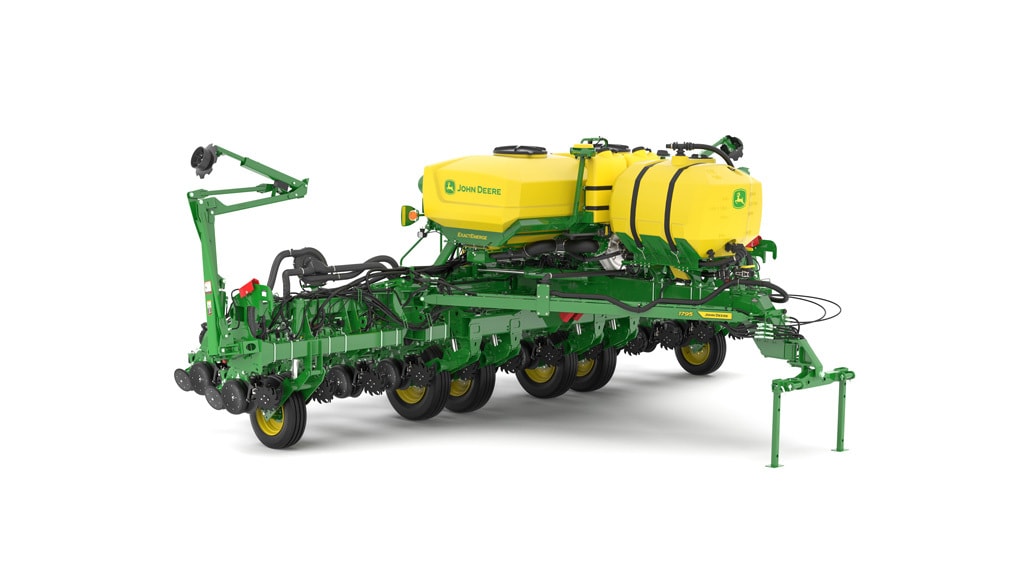

The 1795 is a drawn split-row planter that attaches to the drawbar or 2-point hitch of the tractor.
Drawn Planters | 1795 12 Row Split 23 or 24 Planter
EquipmentJohn Deere
#1795ah
Characteristics
- 30-ft. toolbar with 12 rows on 30-in. spacing
- Can also be configured as 23-row split row in 15-in. spacing or even row of 24 rows
- Available with optional ExactEmerge™ or MaxEmerge™ 5e row unit or standard in mini-hopper MaxEmerge™ 5 row unit
- 3-section frame flexes 15 degrees up & down with narrow transport of 12 ft.
Specifications
| Number of rows | 24 |
| Row spacing |
38 cm 15 in. |
| Frame - Flexibility | Up and down: 15 degree (angle) |
| Row unit seed hoppers |
Capacity 2.2 L 0.062 bu |
| Seed Meters |
Base Vacuum |
| Number of rows | 24 |
| Row spacing |
38 cm 15 in. |
| Flexibility | Up and down: 15 degree (angle) |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base |
Wing tires: VF245/70R19.5 Center tires: VF295/75R22.5 |
| Type |
Standard: MaxEmerge™ 5 row units Optional: ExactEmerge™ row units MaxEmerge 5e row units |
| Opener | Tru-Vee™ double disk |
| Row unit seed hoppers |
Capacity 2.2 L 0.062 bu |
| Base | Vacuum |
| Central Commodity System |
Seed capacity Without liquid tank: 3524 L 100 bu With liquid tank: 2467 L 70 bu |
| Base | Hydraulic variable rate drive |
| Type | Automatic alternating or independent control |
| Base | SeedStar™ on GreenStar™ displays |
| Tank capacity |
1590 L 420 U.S. gal. |
| ExactRate Fluid Transfer System | Available |
| Transport width (with markers) |
4043 mm 159.2 in. |
| Transport length |
8914 mm 351 in. |
| Transport height |
4111 mm 161.8 in. |
| Field operation width |
9874 mm 388.7 in. |
| Field operation length |
7151 mm 281.5 in. |
| Recommended tractor horsepower |
Minimum required for 9.1 m (30 ft) models: 201 kW 270 hp Minimum required for 12.2 m (40 ft) models: 268 kW 360 hp |
| Recommended tractor hydraulics |
Hydraulic oil pump required to operate ExactEmerge™ planter: 227 L/min 60 gpm Tractor standby pressure: 15,500 kPa 155 bar (2300 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
