Drawn Planters | 1795 16Row Split 31 or 32 Planter

Equipment
John Deere
#1795ch

Disclaimer |

Characteristics

  • 40-ft. toolbar with 16 rows on 30-in. spacing
  • Can also be configured as 31-row split row in 15-in. spacing or even row of 32 rows
  • Available with optional ExactEmerge™ or MaxEmerge™ 5e row unit or standard in mini-hopper MaxEmerge™ 5 row unit
  • 3-section frame flexes 15 degrees up & down with narrow transport of 12 ft.

Note that this product is available in store only.
Get pre-approved for financing
SKU: 1795ch Category:

Description

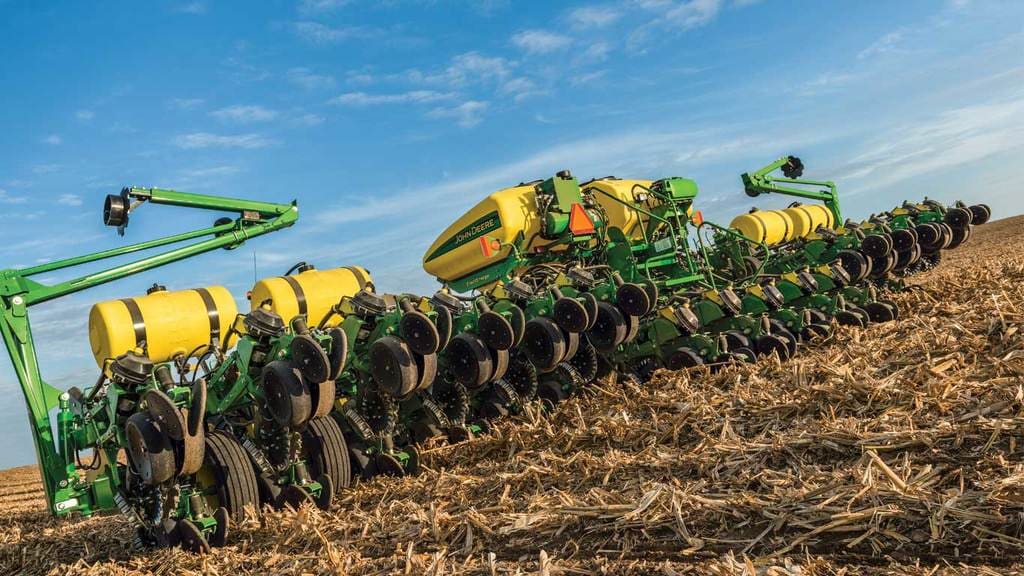

The 16/31 and 16/32 1795 is a drawn split-row planter that attaches to the drawbar or 2-point hitch of the tractor. This 40-ft model is available as a 16-row 30-in. planter that is a 31-row split row planter in the 15-in. row spacing configuration and can also be ordered in an even row configuration of 32 rows.

Specifications

Number of rows 31 or 32
Row spacing 31R15 and 32R15: 38 cm
15 in.
Frame - Flexibility Up and down: 15 degree (angle)
Row unit seed hoppers Capacity
Vacuum meter: 2.2 L
0.62 bu
Seed Meters Base
Vacuum
Number of rows 31 or 32
Row spacing 31R15 and 32R15: 38 cm
15 in.
Flexibility Up and down: 15 degree (angle)
Type Wheel modules with rephasing hydraulic cylinders
Base Fertilizer contact drive tire: 18x9.56-8 4PR: 193 kPa
1.93 bar (28 psi)
Center grame tires (4 per machine): 31R15,32R15, 24R20, 23R15and 24R15 with fertilizer: 11R22.5 TL LR F: 414 kPa
4.14 bar (60 psi)
Wing tires (4 per machine): 10x15 LR D: 279 kPa
2.758 bar (40 psi)
Type Standard: MaxEmerge™ 5 row units
Optional: ExactEmerge™ row units
MaxEmerge 5e row units
Opener Tru-Vee Double Disk
Row unit seed hoppers Capacity
Vacuum meter: 2.2 L
0.063 bu
Base Vacuum
Central Commodity System Seed capacity
2467 L
70 bu
3524 L
100 bu
Base 56 V Electric motors
Type Automatic alternating or independent control
Base SeedStar™ on GreenStar™ displays
Transport width (with markers) 31R15 and 32R15: 4.01 m
13.17 ft
Transport length 31R15 and 32R15: 10.46 m
34.33 ft
Transport height 31R15 and 32R15: 3.96 m
13 ft
Field operation width 31R15 and 32R15: 13.0 m
42.81 ft
Field operation length 31R15 and 32R15: 7.7 m
25.34 ft
Recommended tractor horsepower Minimum required for 9.1 m (30 ft) models: 201 kW
270 hp
Minimum required for 12.2 m (40 ft) models: 268 kW
360 hp
Recommended tractor hydraulics Hydraulic oil pump required to operate ExactEmerge™ planter: 227 L/min
60 gpm
Tractor standby pressure: 15,500 kPa
155 bar (2300 psi)
Hydraulic system working pressure: 20,684 kPa
207 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827 bar (12,000 psi)
