Characteristics

  • Compatible with 3R Series Tractors
  • Quik-Park™ mounting system for efficient attachment and removal
  • Easy maintenance for increased uptime
  • 999 pounds (453 kg) lift capacity

Note that this product is available in store only.
Get pre-approved for financing
SKU: h160xp Category:

Description

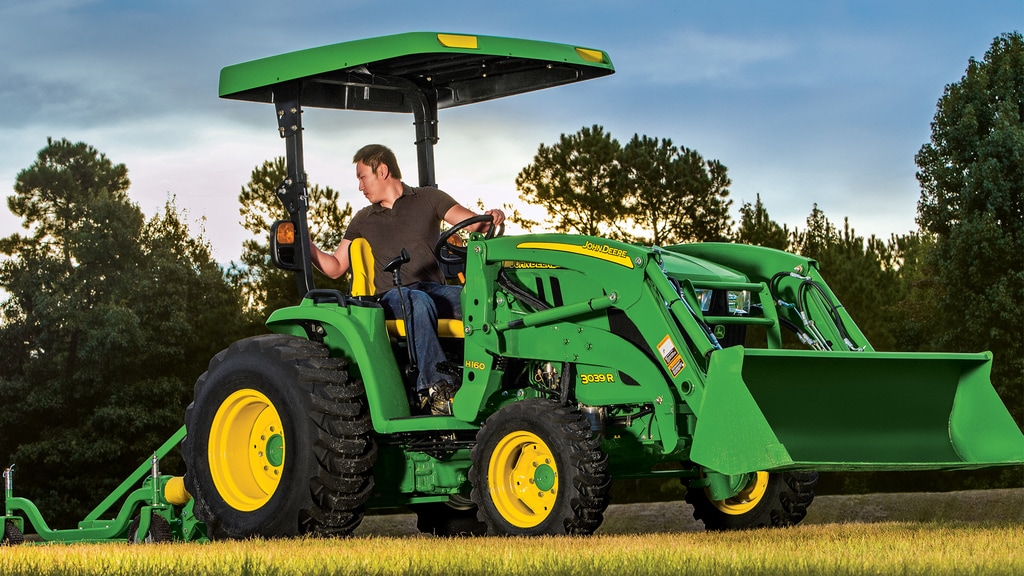

The H160 was designed to work perfectly with 3R Series Tractors. It has the visibility, efficiency and ease-of-use property owners need in a loader.

Specifications

Maximum lift height (A) 2284 mm
90 in.
Lift capacity at full height Measured at pivot (U)
617 kgf
1360 lbf
Measured at 500 mm ahead of pivot (V)
453 kgf
999 lbf
Boom breakout force Measured at pivot (Y)
1295 kgf
2855 lbf
Measured at 500 mm ahead of pivot (Z)
922 kgf
2032 lbf
Bucket rollback force capacity At ground-level line (ZZ)
1188 kgf
2619 lbf
Clearance at full height - bucket dumped (C) 1743 mm
68.6 in.
Dump angle, degrees (E) 43 degree (angle)
Rollback angle, degrees (G) 25 degree (angle)
Model 3120/3320/3520/3720
Front tire 7.00-14 6PR R1
Rear tire 11.2-24 6PR R1
Wheelbase 1727 mm
68 in.
Pump capacity 8.6 gpm
Rated pressure 2500 psi
Base weight 257.21 kg
Bucket weight 93.8 kg
206.8 lb
Lift capacity at full height Measured at pivot (U)
617 kgf
1360 lbf
Measured at 500 mm ahead of pivot (V)
453 kgf
999 lbf
Lift capacity at 59 in. (1500 mm) Measured at pivot (W)
771 kgf
1700 lbf
Measured at 500 mm ahead of pivot (X)
595 kgf
1312 lbf
Boom breakout force Measured at pivot (Y)
1295 kgf
2855 lbf
Measured at 500 mm ahead of pivot (Z)
922 kgf
2032 lbf
Bucket rollback force capacity At maximum height (VV)
1205 kgf
2657 lbf
At 59-in. (1500-mm) lift height (XX)
1518 kgf
3347 lbf
At ground-level line (ZZ)
1188 kgf
2619 lbf
Dimensions Maximum lift height (A)
2284 mm
90 in.
At full height - bucket level(B)
83.5 in.
2123 mm
At full height - bucket dumped (C)
1743 mm
68.6 in.
Overall length (I+F), ft (m) 3.122 m
10.24 ft
Digging depth (H) 76 mm
2.9 in.
Reach At maximum height (D)
773 mm
30.4 in.
At ground level - bucket level (F)
1381 mm
54.4 in.
Bucket angle Dump angle, degrees (E)
43 degree (angle)
Rollback angle, degrees (G)
25 degree (angle)
Cycle times Loader raise, seconds
2.76 seconds
Loader lower, seconds
1.69 seconds
Bucket dump, seconds
2.91 seconds
Bucket rollback, seconds
1.72 seconds
