8900A PrecisionCut Fairway Mower featuring programmable TechControl Display.
Home / Equipment / Golf Equipment / Fairway Mowers /

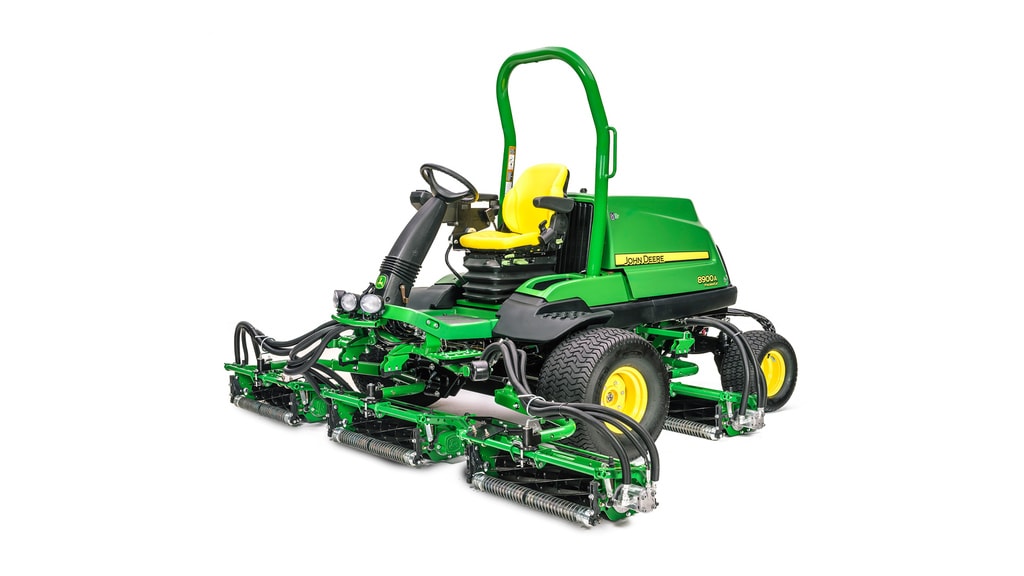

Fairway Reel Mowers | 8900A PrecisionCut™ Mower
Fairway MowersJohn Deere
#890a_tc
Characteristics
- The 8900A features a width of 114 to 130 inches depending on cutting unit size, giving more productivity in terms of acres mowed per hour.
- Another productive advantage of the 8900A is the 8 miles per hour mowing speed.
- Be productive but carry a light footprint: the 8900A comes in significantly lighter than its main competitor.
- Versatility is a hallmark: 8900A has 26" and 30" verticutters and large capacity reel motors for scalping during over-seed operations.
Specifications
| Maximum rated horsepower |
At 2800 rpm ISOC: 41.1 kW 55.1 hp |
| Drive pump | Tandem gear pump |
| Ground pressure |
83 kPa 12 psi |
| Throttle | Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected |
| Mowing speed |
0-12.8 km/h 0-8.0 mph |
| Cutting unit size |
Quick Adjust QA7: 66 or 76 cm Quick Adjust QA7: 26 or 30 in. |
| Total width of cut |
289.5 or 330.2 cm 114 or 130 in. |
| Reel diameter |
17.8 cm 7 in. |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) |
10 Blade: 1.06 mm/km/h 10 Blade: 0.067 in./mph 8 Blade: 1.33 mm/km/h 8 Blade: 0.084 in./mph |
| Type | Direct Inject Turbocharged Diesel |
| Compliant emission regulation | United States and Canada Tier 4 |
| Horsepower |
Maximum rated horsepower At 2800 rpm ISOC: 41.1 kW 55.1 hp |
| Cylinders | Four |
| Displacement |
2.091 L 127.6 cu in. |
| Air cleaner | 2-stage dry element |
| Fuel | Diesel up to B20 compliant |
| Cooling system | Liquid centrifugal pump; forward machine location for optimum cooling |
| Drive pump | Tandem gear pump |
| Cutting units drive | Hydraulic motor to each cutting unit |
| Hydraulic system capacity |
37.8 L 10 U.S. gal. |
| Fuel tank capacity |
60.6 L 16 U.S. gal. |
| Steering | Hydraulic power with double acting steering cylinder |
| Front drive tires | 26.5x14-12 turf |
| Steering tires | 20x12X10-8 turf |
| Ground pressure |
83 kPa 12 psi |
| Brakes | Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system |
| ROPS | Standard; meets ISO 21299 Standard |
| Cutting units lowered |
Full fluids; no operator Quick Adjust QA7 (with 66 cm / 26 in.) cutting units lowered: 1239 kg Full fluids; no operator Quick Adjust QA7 (with 66 cm / 26 in.) cutting units lowered: 2725 lb Full fluids; no operator Quick Adjust QA7 (with 76 cm / 30 in.) cutting units lowered: 1270 kg Full fluids; no operator Quick Adjust QA7 (with 76 cm / 30 in.) cutting units lowered: 2795 lb |
| Throttle | Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Forward/reverse | 2-pedal |
| Mower lift | One-touch single handle |
| Parking brake | Electric Switch on Command Arm for Internal Wet Disk Brakes |
| Seat | Air Ride suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment |
| PTO | Electric Switch on Command Arm |
| Ignition | Key start |
| Work lights | Standard 3 front work lights |
| Tilt steering | Left Foot operated for easy adjustment |
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected |
| Storage | Cup holder; two-way radio located in Command Arm; large operator storage located on left hand side of operator station |
| Height with ROPS |
2200 mm 87 in. |
| Length |
2825 mm 111 in. |
| Transport width |
Quick Adjust QA7 (with 66 cm / 26 in.): 2194 mm Quick Adjust QA7 (with 66 cm / 26 in.): 86.38 in. Quick Adjust QA7 (with 76 cm / 30 in.): 2385 mm Quick Adjust QA7 (with 76 cm / 30 in.): 93.90 in. |
| Mowing position width |
QA7 (66 cm / 26 in.) 3275 mm QA7 (66 cm / 26 in.) 129 in. QA7 (76 cm / 30 in.) 3695 mm QA7 (76 cm / 30 in.) 145 in. |
| Wheelbase |
1585 mm 62.4 in. |
| Ground speed |
Mowing 0-12.8 km/h 0-8.0 mph Transport 19.2 km/h 12 mph Reverse 9.6 km/h 6 mph |
| Number | Five |
| Size |
Quick Adjust QA7: 66 or 76 cm Quick Adjust QA7: 26 or 30 in. |
| Total width of cut |
289.5 or 330.2 cm 114 or 130 in. |
| Height of cut |
QA7: 6.3-50.8 mm QA7: 0.25-2.0 in. |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) |
Rollers Front and rear: 76.2 mm Front and rear: 3 in. 10 Blade: 1.06 mm/km/h 10 Blade: 0.067 in./mph 8 Blade: 1.33 mm/km/h 8 Blade: 0.084 in./mph |
| Reel diameter |
17.8 cm 7 in. |
| Bedknife adjustment | Reel to bedknife |
| Backlapping | Standard; pressure sensing flow compensating backlap valve; manual reel speed adjustment |
| Measuring standard | ISO 11201 |
| Attachments installed | FTCs, reels engaged |
| Actual Fuel usage will vary depending on course conditions, operation, turf and fuel quality |
25% load: 3.63 L/hr 0.96 gph 40% load: 5.64 L/hr 1.49 gph 50% load: 6.85 L/hr 1.81 gph |
| Type | Two-year limited |
| Type | ANSI B71.4-2012. |
