Description
8800A TerrainCut Rough Mower, featuring programmable TechControl Display. Build your own today.
Home / Equipment / Golf Equipment / Rough Trim and Surround Mowers /

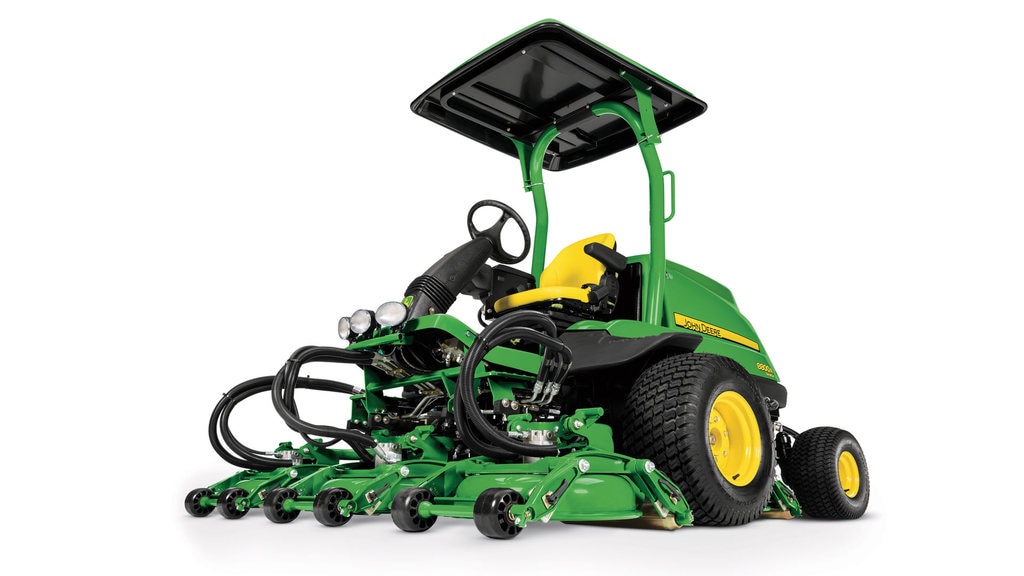

Rough Mowers | 8800A TerrainCut™
Rough Trim and Surround MowersJohn Deere
#880avtc
Characteristics
- TechControl™ Display locks in performance, and uptime
- LoadMatch™ to maintain cut quality
- 27% more hp, 20 percent more torque in the mowing circuit
- Final Tier 4 without sacrificing horsepower
Specifications
| Maximum rated horsepower |
At 2800 rpm ISOC: 41.1 kW 55.1 hp |
| Drive pump | Tandem gear pump |
| Ground pressure |
82.7-124 kPa 12-18 psi |
| Throttle | Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected |
| Mowing speed |
0-12.8 km/h 0-8 mph |
| Total width of cut |
53.3 cm 21 in. |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) |
4572 m/min 15,000 fpm |
| Type | Direct Inject Turbocharged Diesel |
| Compliant emission regulation | United States and Canada Tier 4 |
| Horsepower |
Maximum rated horsepower At 2800 rpm ISOC: 41.1 kW 55.1 hp |
| Cylinders | Four |
| Displacement |
2.091 L 127.6 cu in. |
| Air cleaner | 2-stage dry element |
| Fuel | Diesel up to B20 compliant |
| Cooling system | Liquid centrifugal pump; forward machine location for optimum cooling |
| Drive pump | Tandem gear pump |
| Cutting units drive | Direct-coupled hydraulic gear motor |
| Hydraulic system capacity |
45.4 L 12 U.S. gal. |
| Fuel tank capacity |
61.7 L 16 U.S. gal. |
| Steering | Hydraulic power with dual rod, double acting steering cylinder |
| Front drive tires | 26x12-12 Multi Trac |
| Steering tires | 20x12X10-8 turf |
| Ground pressure |
82.7-124 kPa 12-18 psi |
| Brakes | Electric Switch on Command Arm for Internal Wet Disk Brakes |
| ROPS | Standard, meets ISO 21299 standards |
| Throttle | Automatic controls with AutoPedal foot controls; manual control through TechControl display |
| Forward/reverse | 2-pedal |
| Mower lift | One-touch single handle |
| Parking brake | Electric Switch on Command Arm for Internal Wet Disk Brakes |
| Seat | Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment |
| PTO | Electric Switch on Command Arm |
| Tilt steering | Left Foot operated for easy adjustment |
| Operator display | TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; Loadmatch™ and ON/OFF Cruise Control Use selection: all settings are pass code protected |
| Storage | Cup holder; two-way radio; large operator storage located on left hand side of operator station |
| Height with ROPS |
2.24 m 88 in. |
| Length |
3.38 m 133 in. |
| Transport width |
2.21 m 87 in. |
| Mowing position width |
2.23 m 88 in. |
| Ground speed |
Mowing 0-12.8 km/h 0-8 mph Transport 0-20.12 km/h 0-12.5 mph Reverse 9.6 km/h 6 mph |
| Total width of cut |
53.3 cm 21 in. |
| Height of cut |
Construction 10 gauge 3.4 mm 0.1345 in. Steel with front skid plate No tool adjustment: 2.54-10.2 cm 1-4 in. |
| Frequency of clip (FOC Reels) OR Blade tip speed (decks) |
Rollers Rear: 7.6 cm Rear: 3 in. Front: Two: diameter: 10.2 cm Front: Two: diameter: 4 in. Wide: 12.7 mm Wide: 5 in. 4572 m/min 15,000 fpm |
| Operator ear full engine | 91 dBA |
| Measuring standard | ISO 11201 |
| Actual Fuel usage will vary depending on course conditions, operation, turf and fuel quality |
25% load: 3.63 L/hr 0.96 gph 40% load: 5.64 L/hr 1.49 gph 50% load: 6.85 L/hr 1.81 gph |
| Type | Two-year limited |
| Type | ANSI B71.4-2012. |
