Description
The rugged, simple design of the 972 Flail Chopper provides dependable performance. Two rows of double-edged knives cut the standing crop and lift it to a transfer auger.

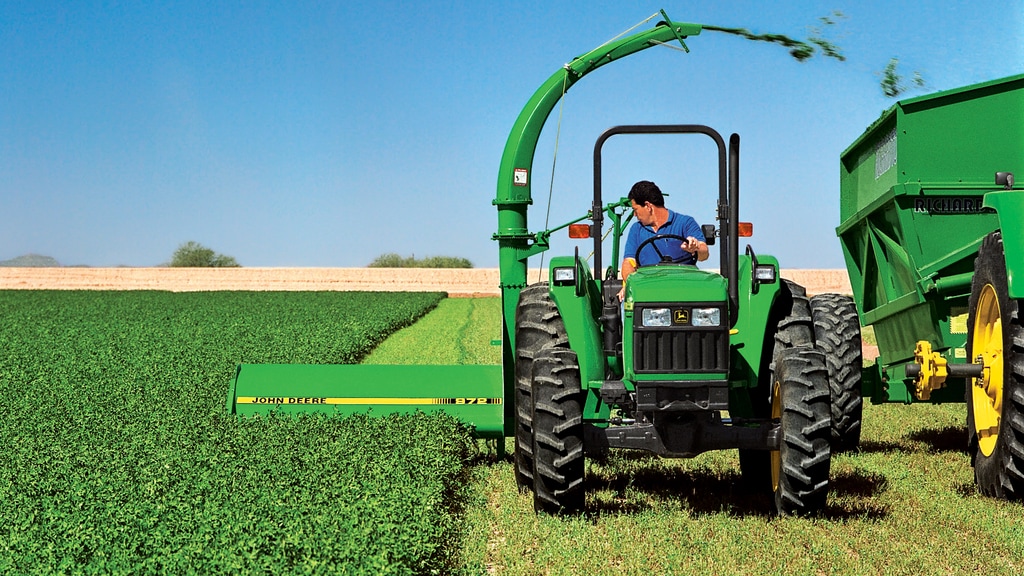

Harvesting | 972 Flail Chopper
EquipmentJohn Deere
#0972xp
Characteristics
- The 972 Flail Chopper has a cutting width of 6 ft for good productivity
- Adjustable discharge spout
- Gauge wheels are very easy to change
- Tractor hookup is fast and easy
Specifications
| Cutting width |
183 cm 72 in. |
| Cutting height |
6.4-15.2 cm 2.5-6 in. |
| Transport width |
287 cm 113 in. |
| Weight |
849 kg 1,872 lb |
| PTO speed | 540 rpm |
| Drive system protection | Slip clutch protected |
| Cutting width |
183 cm 72 in. |
| Cutting height |
6.4-15.2 cm 2.5-6 in. |
| Operating width |
312 cm 123 in. |
| Transport width |
287 cm 113 in. |
| Length |
366 cm 144 in. |
| Height (with spout) |
312 cm 123 in. |
| Weight |
849 kg 1,872 lb |
| Number of knives |
Rotor 42 (double edge) Cuttherhead 3 regular 3 optional |
| PTO speed | 540 rpm |
| Rotor speed | 1,400 rpm |
| Cutterhead speed | 800 rpm |
| Auger speed | 246 rpm |
| Tires | 15-5.90, 4 PR |
| Drive system protection | Slip clutch protected |
| Hitch adjustment | Yes, from tractor seat |
| Wagon hitches | Equal angle optional |
