Description
The DB60 model is a 60-ft toolbar with 36 rows on 20-in. spacing. MaxEmerge™ XP row units, vacuum seed metering, and independent tri-fold markers are base equipment on the DB60.

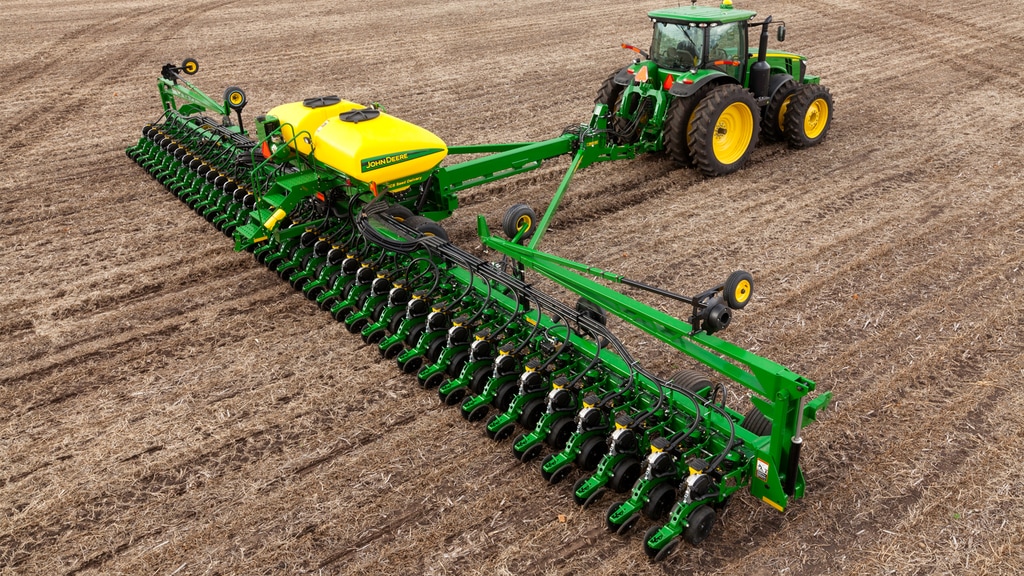

Planting Equipment | DB60 36Row20 Planter
EquipmentJohn Deere
#db60xh
Characteristics
- 60-ft. toolbar with 36 rows on 20-in. spacing
- Available in mini-hopper, 1.6-bu., or 3-bu. ExactEmerge or MaxEmerge™ 5e row unit
- Insecticide option for mini-hopper
- Requires a minimum 275-hp tractor equipped with Category 4 drawbar
Specifications
| Number of rows | 36 |
| Row spacing |
50.8 cm 20 in. |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters |
Base Vacuum |
| Number of rows | 36 |
| Row spacing |
50.8 cm 20 in. |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base |
Center frame tires: 400/500-R22.5: 552 kPa 5.5 bar (80 psi) Center frame tires: 600/50R22.5: 379 kPa 3.8 bar (55 psi) 14-ply Center frame tires: 31-13.5x15 621 kPa 6.2 bar (90 psi) Center frame tires (DB66 and smaller planters): 445/50R22.5: 517 kPa (5.2 bar) [75 psi] 6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi] 8-ply wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi] |
| Type | ExactEmerge™ row units or MaxEmerge 5e row units |
| Opener | Tru-Vee double disk |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Base | Vacuum |
| Central Commodity System |
Seed capacity 4581 L 130 bu |
| Base | Electric motors: 56 V |
| Type | Automatic alternating or independent control |
| Base | SeedStar™ electronic system |
| Tank capacity |
2271 L 600 gal. |
| ExactRate Fluid Transfer System | Available |
| Transport weight |
Average empty weight: 15,785 kg 34,800 lb |
| Recommended tractor horsepower |
Requires tractor equipped with Category 4 drawbar and minimum 205 kW 275 hp |
| Recommended tractor hydraulics |
Hydraulic oil pump required to operate electric drive planter: 227 L/min 60 gpm Tractor standby pressure: 15,500 kPa 155 bar (2300 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
