Description
DB80 Planter from John Deere. Learn more about the features, specifications, and more for the DB80 Planter.

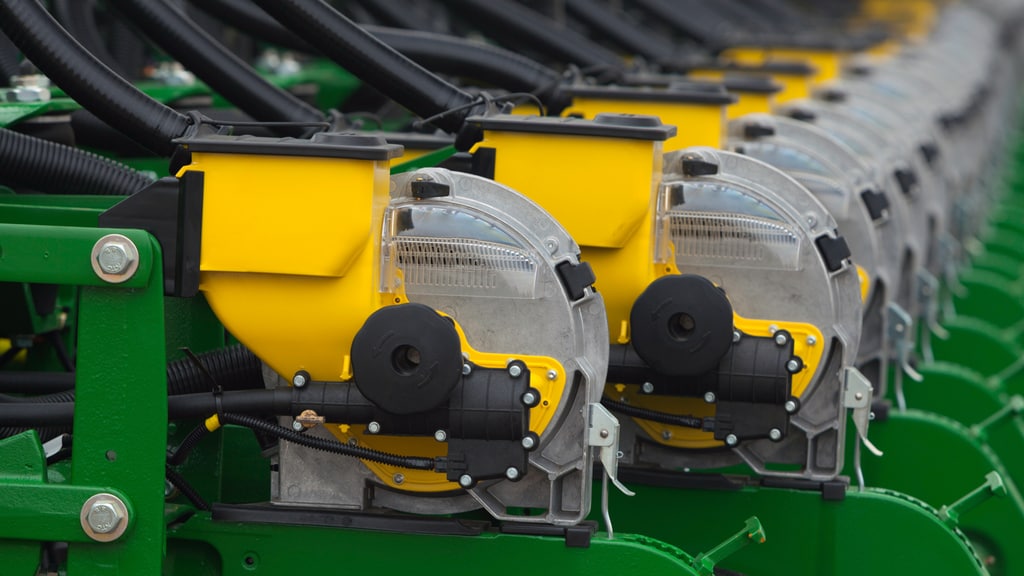

Planting Equipment | DB80 32Row30 Planter
EquipmentJohn Deere
#db80xh
Characteristics
- 80-ft. toolbar with 32 rows on 30-in. spacing
- Available in mini-hopper, 1.6-bu., or 3-bu. ExactEmerge or MaxEmerge™ 5e row unit
- Insecticide option for mini-hopper and 1.6-bu.
- Requires a minimum 300-hp tractor equipped with Category 4 drawbar
Specifications
| Number of rows | 32 |
| Row spacing |
76 cm 30 in. |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Seed Meters |
Base Vacuum |
| Number of rows | 32 |
| Row spacing |
76 cm 30 in. |
| Type | Wheel modules with rephasing hydraulic cylinders |
| Base |
Center frame tires: 400/500-R22.5: 552 kPa 5.5 bar (80 psi) Center frame tires: 600/50R22.5: 379 kPa 3.8 bar (55 psi) 14-ply Center frame tires: 31-13.5x15 621 kPa 6.2 bar (90 psi) Center frame tires (DB74-DB88 Planters): 445/50R22.5: 522 kPa (5.5 bar) [80 psi] 6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi] 8-ply Wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi] |
| Type |
ExactEmerge™ row units or MaxEmerge™ 5e row units |
| Opener | Tru-Vee double disk |
| Row unit seed hoppers |
Capacity Vacuum meter: 2.2 L 0.062 bu |
| Base | Vacuum |
| Central Commodity System |
Seed capacity 3524 L 100 bu With Refuge Plus option: 4405 L 125 bu |
| Base | Electric motors: 56 V |
| Type | Automatic alternating or independent control |
| Base | SeedStar™ electronic system |
| Tank capacity |
499 Imperial gal. 2271 L 600 U.S. gal. |
| Transport weight |
Average empty weight: 16,057 kg 35,400 lb |
| Recommended tractor horsepower |
Minimum required on tractor with Category 4 drawbar: 223.7 kW 300 hp |
| Recommended tractor hydraulics |
Hydraulic oil pump required to operate electric drive planter: 227 L/min 60 gpm Tractor standby pressure: 15,500 kPa 155 bar (2300 psi) Hydraulic System Working Pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi) |
