Description

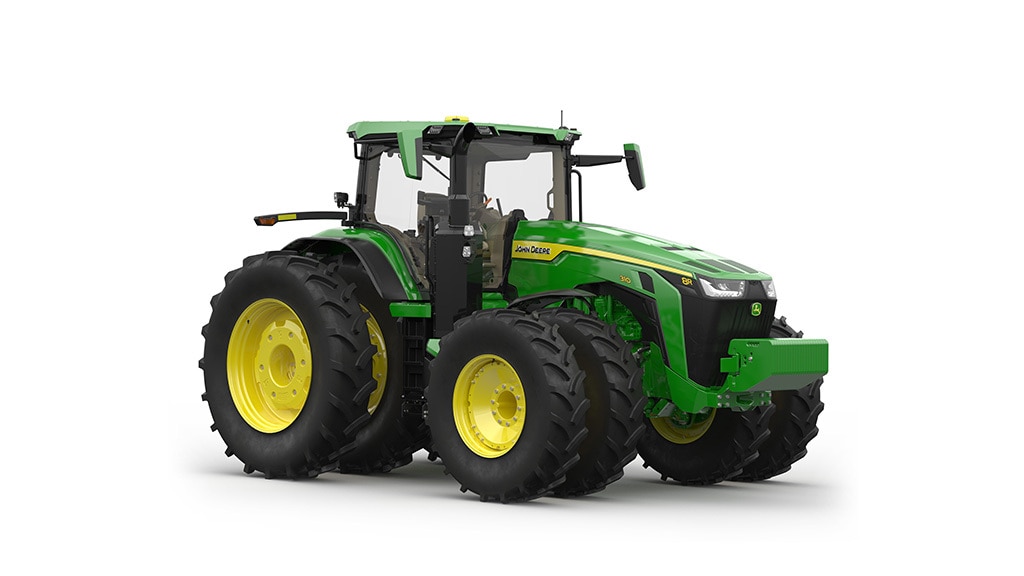

The 8R 310 wheel row crop tractor is intelligently built to deliver the most integrated experience an operator can have.
Home / Equipment / Tractors / Row crop Tractors / 8 Series Tractors / 8R 310 Tractor | 310HP | Row-Crop Tractors
The 8R 310 wheel row crop tractor is intelligently built to deliver the most integrated experience an operator can have.
| Engine description | John Deere PowerTech™ 9.0 L (B20 diesel compatible) |
| Engine displacement |
9.0 L 549 cu in. |
| Rated engine power |
ECE-R120: 228 kW 310 hp |
| Maximum engine power |
ECE-R120: 251 kW 341 hp |
| Rated PTO power (hp SAE) |
191 kW 257 hp |
| Transmission type |
Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift™ 40 km/h e23™ PowerShift™ 50K, 50 km/h 31 mph John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr™ IVT™ 50K, 0.05-50 km/h 0.03-31 mph |
| Hydraulic pump rated output |
Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
| Rear hitch category (SAE designation) | Category 4N/3 |
| Base machine weight |
MFWD/PowerShift: 11,700 kg 25,800 lb ILS™/e23: 12,700 kg 28,000 lb |
| Engine Make | John Deere |
| Engine Model | JD9 |
| Engine Family | VJDXL09.0333 |
| Displacement (L) | 9 |
| Displacement (cu in.) | 549 |
| Rated Engine Power (hp) | 306 |
| Rated Engine Power (kw) | 228 |
| Rated Engine Power (PS) | 310 |
| Maximum Engine Power (hp) | 336 |
| Maximum Engine Power (kW) | 251 |
| Maximum Engine Power (PS) | 341 |
| Pump Rated Output |
Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
| Base Machine Weight (lb) | 28,000 |
| Base Machine Weight (kg) | 12,700 |
| Description | John Deere PowerTech 9.0 L (B20 diesel compatible) |
| Engine type | In-line six, four valve |
| Engine family | MJDXL09.0333 |
| Rated speed | 2100 rpm |
| Aspiration | Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation |
| Cylinders liners | Wet-sleeve |
| Emission level | Final Tier 4 |
| After treatment type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) |
| Displacement |
9.0 L 549 cu in. |
| Rated power |
ECE-R120: 228 kW 310 hp |
| Rated PTO power (hp SAE) |
191 kW 257 hp |
| Power boost | 10 percent |
| Maximum engine power |
ECE-R120: 251 kW 341 hp |
| Engine peak torque |
At 1600 rpm: 1452 Nm 1070 lb-ft |
| PTO torque rise | 40 percent |
| Type |
Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift 40 km/h e23 PowerShift with Efficiency Manager 50K, 50 km/h 31 mph John Deere AutoPowr IVT 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr IVT 50K, 0.05-50 km/h 0.03-31 mph |
| Transmission Type |
Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift™ 40 km/h e23™ PowerShift™ 50K, 50 km/h 31 mph John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr™ IVT™ 50K, 0.05-50 km/h 0.03-31 mph |
| Maximum Speed Forward |
50 km/h 31 mph |
| Minimum Speed Forward |
0.05 km/h 0.03 mph |
| Type | Closed-center, pressure/flow compensated system with load sensing |
| Pump rated output |
Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
| Available flow at a single rear SCV |
1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) coupler: 159 L/min 42 gpm |
| Available flow at front SCVs |
96 L/min 25 gpm |
| Number of rear selective control valves (SCVs) |
Standard: 1.3-cm (1/2-in.) ISO couplers: 4 Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available 1.9-cm (3/4-in.) ISO coupler: 1 |
| SCV control | Electronic |
| Hitch category (SAE designation) |
Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg 15,000 lb |
| Maximum lift capacity behind lift points |
Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg 26,729 lb |
| Sensing type | Electrohydraulic |
| Rear axle differential lock | Electrohydraulic |
| Rear Hitch Category (SAE Designation) | Category 4N/3 |
| Maximum Lift Capacity at 610-mm Behind Hitch Point |
9,072 kg 20,000 lb |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point |
6,894 / 9,072 kg 15,200 / 20,000 lb |
| Drawbar category |
Standard: Category 4 with heavy-duty support Optional: Category 4 |
| Maximum vertical load |
Standard: 4,990 kg 11,000 lb Optional: 2,245 kg 4,950 lb |
| Type |
Independent Standard: 44 mm (1.75 in.) 20-spline, 1,000 rpm Optional: 44 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm 44 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm |
| Engine rpm (at rated PTO speeds) |
16-speed PowerShift: 1,000 PTO rpm at 2,003 engine rpm, 1,000 ECO PTO rpm at 1,596 engine rpm, 540 PTO rpm at 1,817 engine rpm IVT: 1,000 PTO rpm at 2,000 engine rpm, 1,000 ECO PTO at 1594 engine rpm, 540 PTO rpm at 1,814 engine rpm e23 PowerShift: 1,000 PTO rpm at 1,995 engine rpm, 1,000 ECO PTO at 1,590 engine rpm, 540 PTO rpm at 1,810 engine rpm |
| Economy PTO speeds | 1,000E rpm |
| Multispeed PTO option availability | Available: 45-mm (1.75-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable |
| PTO actuation | Electrohydraulic with adjustable modulation |
| PTO Category |
Standard: 45 mm 1.75 in. 20-spline, 1,000 rpm Optional: 45 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm 1.375 in. 540/1000 rpm 45 mm 20-spline, 1,000 rpm/1,000E rpm |
| Rated PTO Power (hp) | 257 |
| Rated PTO Power (kW) | 191 |
| Rated PTO Power (PS) | 261 |
| Engine rpm at Rated PTO Speeds (540/1.000) | 1,810 / 1,995 |
| Engine rpm at Rated PTO Speeds (540E/1000/1.000E) | -- / 1,995 / 1,590 |
| Engagement Method | Electrohydraulic with adjustable modulation |
| Number of Splines | 20 |
| Category | Category 3N |
| Standard lift capacity |
Category 3N ground-engaging front hitch: 5200 kg 11,464 lb |
| Front power take-off (PTO) |
44 mm (1.75 in.) 20 spline, 1000 rpm 35 mm (1.375 in.) 21 spline, 1000 rpm 35 mm (1.375 in.) 6 spline, 1000 rpm (available dependent on location) |
| PTO speed | 1,000 PTO rpm at 2000 engine rpm |
| Front Hitch Category | Category 3N |
| Lift Capacity Through Full Lift Range at Coupling Points (lb) | 11,464 |
| Lift Capacity Through Full Lift Range at Coupling Points (kg) | 5,200 |
| Type |
Standard: Rack-and-pinion, double flat, or flange axles Optional: Long, dual taper hub: Diameter: 110 x 3010 mm 4.33 x 118.5 in. Short, double flat axle with single taper hub: Diameter: 120 x 2550 mm 4.72 x 100.4 in. |
| Final drive type | Inboard planetary three pinion |
| Rear differential lock | Full-locking electrohydraulic |
| Rear Axle Type |
Standard: Long, 120 mm (4.72 in.) diameter by 3,010 mm (118.5 in.) length with Double Taper Wheel Hubs Optional: Long, 120 mm (4.72 in.) diameter by 3,010 mm (118.5 in.) length with Double Flat Wheel Hubs Short, 120 mm (4.72 in.) diameter by 2,550 mm (100.4 in.) length with Double Flat Wheel Hubs |
| Final Drive | Inboard planetary three pinion |
| Type |
Standard: ILS Optional: 1500 Series MFWD |
| Front axle differential lock | ILS / 1500 Series MFWD: Full-locking electrohydraulic |
| Front Axle Type |
Standard: ILS Optional: 1500 Series MFWD |
| Wheel tread range |
Standard (ILS): 1,524-3,657 mm 60-144 in. Optional (1500 Series MFWD): 1,524-3,657 mm |
| Turning radius without brakes |
1500 with 420/850R34 Group 43 tires at 182.9-cm (72-in.) spacing: 5.71 m 18.7 ft ILS with 480/70R34 Group 43 tires at 184.2-cm (72.5-in.) spacing: 6.45 m 21.2 ft |
| Central Tire Inflation System (CTIS) | Optional |
| Type |
Standard: Hydraulic power-steering with electric pump back-up Optional: ActiveCommand Steering 2 (ACS™ 2) with electronic backup pump |
| Alternator size |
Standard: 200 amp Optional: 330 amp |
| Battery options | 12 V |
| Working lights | 18–24 light-emitting diode (LED) |
| Type of bulb in headlight (Halogen, Zenon, LED) |
Standard: halogen, 65 W Available: LED |
| Total cold cranking amps | 1,850 CCA |
| Battery Voltage (V) | 12 |
| Battery Cold Cranking Amps (CCA) | 1,900 |
| Alternator Capacity |
200 amp Optional: 330 amp |
| Driving Lights | LED |
| Seat |
Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) Standard: air suspension Optional: ActiveSeat™ II |
| Cab suspension | Adjustable cab suspension optional |
| Instructional seat | Standard |
| Display |
Standard: 4600 Generation 4 CommandCenter™: 25.4 cm 10 in. |
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna |
| Inner cab volume |
3.24 m3 114 cu ft |
| Cab glass area |
6.52 m2 70.18 sq ft |
| Seat Suspension |
Air seat Optional: ActiveSeat™ II |
| Degree of Seat Swivel, Left Hand (degree (angle)) | 25 |
| Degree of Seat Swivel, Right Hand (degree (angle)) | 40 |
| Primary Display |
G5ᴾˡᵘˢ Display - 325 mm 12.8 in. |
| Inner Cab Volume (cu ft) | 114 |
| Inner Cab Volume (m³) | 3.24 |
| Cab Glass Area (sq ft) | 70.61 |
| Cab Glass Area (m²) | 6.56 |
| Wheelbase |
MFWD: 3,080 mm 121.3 in. ILS: 3,050 mm 120.1 in. |
| Overall length |
6,636 mm 261.3 in. |
| Drawbar clearance |
376 mm 14.8 in. |
| Front axle center |
MFWD: 686 mm 27 in. ILS: 590 mm 23.2 in. |
| Base machine weight |
MFWD/PowerShift: 11,700 kg 25,800 lb ILS™/e23: 12,700 kg 28,000 lb |
| Maximum ballast level |
20,000 kg 44,100 lb |
| Maximum permissible weight |
20,000 kg 44,100 lb |
| Crankcase oil volume |
1500 MFWD: 27.6 L 7.3 U.S. gal. ILS: 25.8 L 6.8 U.S. gal. |
| Fuel tank |
727 L 192 U.S. gal. CTIS: 651 L 172 U.S. gal. |
| Diesel exhaust fluid (DEF) tank |
37.2 L 9.8 U.S. gal. |
| Cooling system |
42.3 L 11.2 U.S. gal. |
| Transmission-hydraulic system |
1500 MFWD: 184.6 L 48.8 U.S. gal. ILS: 207.2 L 54.7 U.S. gal. |
| Fuel Tank Capacity (gal.) |
192 CTIS: 172 |
| Fuel Tank Capacity (L) |
727 CTIS: 651 |
| Diesel Exhaust Fluid (DEF) Tank Capacity (gal.) | 9.8 |
| Diesel Exhaust Fluid (DEF) Tank Capacity (L) | 37.2 |
| Cooling System Capacity (gal.) | 11.2 |
| Cooling System Capacity (L) | 42.3 |
| Transmission - Hydraulic System (gal) | 48.8 / 54.7 |
| Transmission - Hydraulic System (L) | 184.6 / 207.2 |
| Crankcase Oil Volume (gal) | 6.8–7.3 |
| Crankcase Oil Volume (L) | 25.7–27.6 |
| Interval for engine oil change | 500 hours |
| Interval for hydraulic/transmission oil change | 1,500 hours |
| Interval for engine coolant change | 6,000 hours |
| Loader | 700M |
| Guidance | Integrated AutoTrac™ |
| Telematic | JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote diagnostics | JDLink hardware standard |
| Country of manufacture | USA |
| Date collected | 07-May-2026 |
| Country of Manufacture | United States |
| Wheel or Track Configuration | Wheel |
| Drive Type | MFWD |
| Engine Make | John Deere |
| Engine Model | JD9 |
| Engine Family | VJDXL09.0333 |
| Emissions Certifications | Final Tier 4 |
| Displacement (L) | 9 |
| Displacement (cu in.) | 549 |
| Aspiration | Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation |
| Number of Cylinders | Six |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) |
| Rated Engine Speed (rpm) | 2,100 |
| Rated Engine Power (hp) | 306 |
| Rated Engine Power (kW) | 228 |
| Rated Engine Power (PS) | 310 |
| Engine Torque at Rated Speed (lb-ft) | 1,070 |
| Engine Torque at Rated Speed (Nm) | 1,452 |
| Maximum Engine Power (hp) | 336 |
| Maximum Engine Power (kW) | 251 |
| Maximum Engine Power (PS) | 341 |
| Maximum Engine Torque |
At 1,600 rpm: 1,452 Nm 1,070 lb-ft |
| Power Bulge (%) | 10 |
| Fuel Type | Diesel |
| Alternative Fuel Type | B30 Diesel Compatible |
| Torque Rise (%) | 40 |
| PTO Speed | 1,000 rpm |
| Front PTO Rotation |
35 mm 1.375 in. 21 spline, 1,000 rpm 45 mm 1.75 in. 20 spline, 1,000 rpm (available through parts only) 6 spline, 1,000 rpm (available dependent on location) |
| Engine rpm (at Rated PTO Speeds) | 2,000 |
| Hydraulic System Type | Closed-center, pressure/flow compensated system with load sensing |
| Pump Rated Output |
Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
| Number of Rear Selective Control Valves (SCVs) |
Standard: 1.3-cm (1/2-in.) ISO couplers: four Optional: 1.3-cm (1/2-in.) ISO couplers: five and six available |
| Available Flow at a Single Rear SCV |
1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm |
| Available Flow at Front SCVs (gpm) | 25 |
| Available Flow at Front SCVs (L/min) | 96 |
| SCV Control | Electronic |
| Steering Type |
Hydraulic power-steering with electric pump back-up Optional: Reactive Command Steering (RCS) with electronic backup pump |
| Guidance | Integrated AutoTrac™; Autonomy Ready (available in select regions) |
| Connectivity | JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | JDLink hardware standard |
| Wheelbase (in.) | 120.1 |
| Wheelbase (mm) | 3,050 |
| Base Machine Weight (lb) | 28,000 |
| Base Machine Weight (kg) | 12,700 |
| Overall Length (in.) | 261.3 |
| Overall Length (mm) | 6,636 |
| Drawbar Ground Clearance (in.) | 15.2 |
| Drawbar Ground Clearance (mm) | 385 |
| Maximum Ballast Level (lb) | 44,100 |
| Maximum Ballast Level (kg) | 20,000 |
| Maximum Permissible Weight (lb) | 44,100 |
| Maximum Permissible Weight (kg) | 20,000 |
