Description
Building, mowing, digging, tilling – sunrise to sunset – it’s all in a day’s work. That’s why we made the new 3R Series Compact Utility Tractors premium in every aspect… and literally from the ground up.
Home / Equipment / Tractors / 3 Series Compact Tractors /
0% financing for 60 months

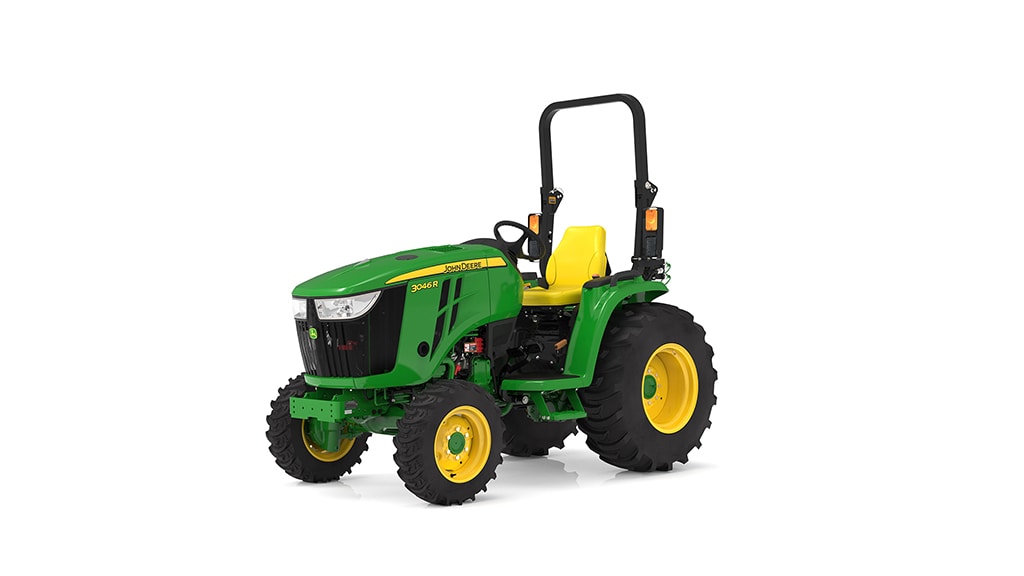

Compact Tractor | 3046R
3 Series Compact TractorsJohn Deere
#3046rlv
Characteristics
- Powerful and reliable Yanmar Diesel Engine
- AutoConnect™ deck compatible for deck attach/detach in seconds
- Cab or Open Station configuration available
- Standard hydrostatic transmission with Twin Touch™ pedals
For pricing and additional discounts, see your local John Deere Dealer.
Specifications
| Engine power (gross) |
SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm |
| Power take-off (PTO) power |
25.2 kW 33.9 hp |
| Steering hydraulics |
23.5 L/min 6.2 gpm |
| Implement hydraulics |
34.3 L/min 9.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms |
995 kg 2194 lb |
| Standard transmission; forward/reverse | eHydro transmission |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) |
Open operator station (OOS): 1391 kg 3066 lb Cab: 1818 kg 4008 lb |
| Wheelbase |
1727 mm 68 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV86CHT-MJTV |
| Engine power (gross) |
SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm |
| Power take-off (PTO) power |
25.2 kW 33.9 hp |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged and intercooled |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement |
Three cylinders: 1.57 L 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke |
86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed |
112.3 Nm 90 lb-ft |
| Fuel tank capacity |
OOS: 37.4 L 10 U.S. gal. Cab only: 47.6 L 12.6 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter size |
1.4 kW 1.9 hp |
| Type | High pressure common rail direct injection |
| Standard transmission; forward/reverse | eHydro transmission |
| Transmission gear ranges | Three-range, infinitely variable |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Hydrostatic power steering |
| Axle capacity |
Front 1450 kg 3197 lb Rear 1850 kg 4079 lb |
| Cruise control | Standard |
| Type | Open center |
| Pump rated output |
Steering 23.5 L/min 6.2 gpm Implement 34.3 L/min 9.1 gpm 57.8 L/min 15.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure |
172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Type | Category 1 |
| Lift capacity, 24-in. behind link arms |
995 kg 2194 lb |
| Standard | Independent rear: 540 rpm |
| Optional | Mid: 2100 rpm |
| Control | Lever and switch |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter |
5.7 L 6 gal. |
| Transmission and hydraulic system |
26.5 L 7 U.S. gal. |
| Type | Spur gear |
| Rollover protective structure |
Type Foldable |
| Platform - flat/straddle | One-piece semi flat |
| Compliance | Complies with OSHA, SAE, and CSA standards for rollover protection |
| Visibility | 360 degree (angle) |
| Doors | Two |
| Noise rating | 80 dBA |
| Seat equipment | Scissor-link |
| Wheelbase |
1727 mm 68 in. |
| Front axle clearance |
Minimum: 171 mm 6.7 in. Maximum: 299 mm 11.8 in. |
| Turning radius with brakes |
2.7 m 8.8 ft |
| Turning radius without brakes |
2.8 m 9.2 ft |
| Approximate shipping weight (open-station; cab) |
OOS: 1391 kg 3066 lb Cab: 1818 kg 4008 lb |
| Front |
R1 Bar: 7-14 R3 Turf : 27x8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25x8.5-14 or 27x8.5-15 |
| Rear |
R1 Bar: 11.2-24 R3 Turf: 41x14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43x16-20 |
| Front tread range |
1117 mm 44 in. |
| Rear tread spacing |
1031 mm 40.6 in. |
