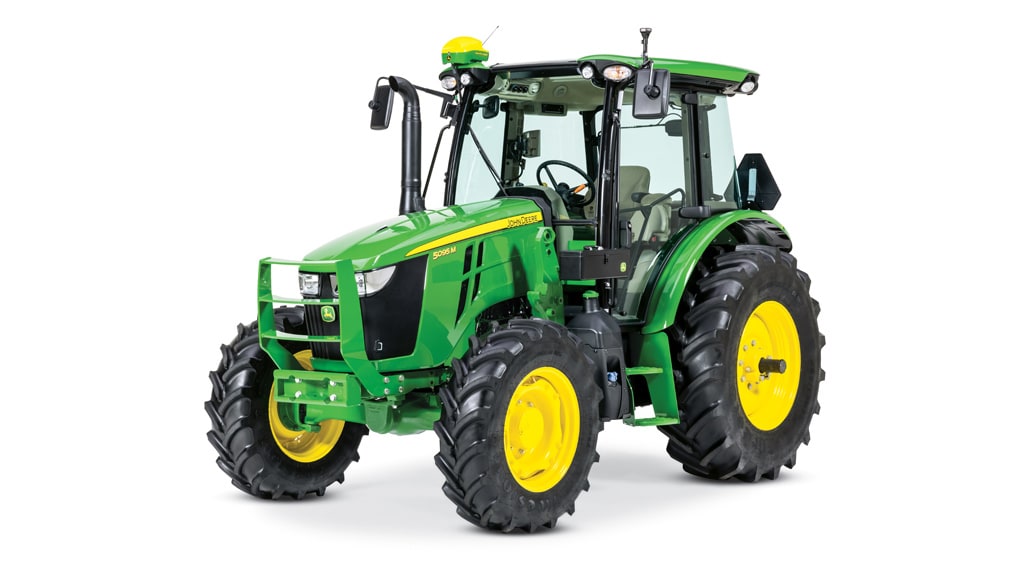

5095M | 5M Series Utility Tractor

5 Series Utility Tractors
John Deere
#5095mpy

Disclaimer |

Characteristics

  • PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)

Note that this product is available in store only.
Get pre-approved for financing
SKU: 5095mpy Categories: , ,

Description

The John Deere 5M Series Tractors come with a set of enhancements that gives you an incredible experience operating the tractor.

Specifications

Engine description John Deere PowerTech™ 4045 EWL
Engine displacement 4 cylinder: 4.5 L
276 cu in.
Rated engine power At 2200 rpm: 70.0 kW
95 hp
Maximum engine power 73.0 kW
97.8 hp
Rated PTO power (hp SAE) At 2100 rpm: 58.8 kW
80 hp
Transmission type Standard: PowrReverser™ 16F/16R
Optional: PowrReverser™ Hi-Lo 32F/16R
PowrQuad™ PLUS 16F/16R
Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
Hydraulic pump rated output PowrReverser™: 94 L/min
24.7 gpm
PowrQuad™ PLUS/Powr8™: 97 L/min
25.6 gpm
Rear hitch category (SAE designation) Category 2; convertible to 1
Base machine weight PowrReverser™: 3764 kg (8,298 lb)
PowrQuad™ PLUS/Powr8™: 3964 kg (8,740 lb)
Description John Deere PowerTech™ 4045 EWL
Engine type 4045HLV82
Engine family NJDXL04.5317
Rated speed 2200 rpm
Aspiration Turbocharged/air-to-air aftercooled
Cylinders liners Wet sleeved
Emission level Final Tier 4
After treatment type DOC/SCR
Displacement 4 cylinder: 4.5 L
276 cu in.
Rated power At 2200 rpm: 70.0 kW
95 hp
Rated PTO power (hp SAE) At 2100 rpm: 58.8 kW
80 hp
Power boost At 1900 rpm: 4 percent
Maximum engine power 73.0 kW
97.8 hp
Engine peak torque At 1600 rpm: 396 Nm
292 lb-ft
PTO torque rise At 1600 rpm: 30 percent
Type Standard: PowrReverser™ 16F/16R
Optional: PowrReverser™ Hi-Lo 32F/16R
PowrQuad™ PLUS 16F/16R
Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
Reverser Left hand, electrohydraulic
Clutch; wet/dry Wet
Creeper Powr8™ 32F/16R with creeper
Type Open center
Pump rated output PowrReverser™: 94 L/min
24.7 gpm
PowrQuad™ PLUS/Powr8™: 97 L/min
19.3 gpm
Available flow at a single rear SCV 70 L/min
18.4 gpm
Number of rear selective control valves (SCVs) Standard: Two
Optional: Three
Number of mid selective control valves (SCVs) Standard: Two
Optional: Up to Three
Joystick SCV control Mechanical
Hitch draft control load sense type Mechanical or Electrohydraulic
Remote control valves available Standard: Two
Optional: Three
Hitch category (SAE designation) Category 2; convertible to 1
Maximum lift capacity behind lift points Standard for PowrReverser™: 2336 kg
5150 lb
Optional for PowrReverser™: 2699 kg
5950 lb
Standard for PowrQuad™ PLUS/Powr8™: 3161 kg
6970 lb
Optional for PowrQuad™ PLUS/Powr8™: 3565 kg
7860 lb
Sensing type Lower link
Rear axle differential lock Electrohydraulic
Drawbar category Category 2
Maximum vertical load Road/field use (250-mm extended): 1450 kg
3197 lb
Field use (350-mm extended): 1200 kg
2646 lb
Field use (400-mm extended): 1200 kg
2646 lb
Type Independent, 34.9 mm (1.375 in)
Standard: 540/540 Economy (6 spline)
Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
Engine rpm (at rated PTO speeds) 540 at 2100 rpm
540E at 1645 rpm
1000 at 2100 rpm
PTO actuation Electrohydraulic
Category Category 2
Standard lift capacity 1931 kg
4257 lb
Front power take-off (PTO) 1000 rpm
(21 spline) 34.9 mm (1.375 in.)
PTO speed 1000 at 2200 rpm
Type Standard: Flange
Optional: Rack-and-pinion (Bar)
Final drive type Inboard planetary
Differential controls Electrohydraulic
Brakes, type and control Hydraulic wet disc
Type Standard: Mechanical Front Wheel Drive (MFWD)
Optional: Two-Wheel Drive (2WD)
Rear 2WD: 18.4R30 (460/85R30) R1W Radial
MFWD: 18.4R30 (460/85R30) R1W Radial
Wheel tread range 2WD: front: 1520-2020 mm
59.8-79.5 in.
MFWD: front: 1299-1997 mm
51.1-78.6 in.
rear: 1350-2286 mm
53.1-90 in.
Turning radius with brakes 2WD: 3.67 m
12.04 ft
MFWD: 3.85 m
12.6 ft
Turning radius without brakes 2WD: 3.85 m
12.6 ft
MFWD: 4.0 m
13.1 ft
Alternator size OOS: 90 amp
Cab: 120 amp
ISOBUS/GreenStar™ Ready: 200 amp
Battery options 12 V
Working lights Standard: Halogen
Optional: LED
Type of bulb in headlight (Halogen, Zenon, LED) Standard: Halogen
Optional: LED
Type of bulb in beacon (Halogen, Zenon, LED) Optional: LED
Rollover protective structure, OOS Rigid - foldable - telescopic
Foldable, two-post
Platform - flat/straddle
Flat
Gearshift location - console/floor
Floor
Seat Standard: Mechanical
Optional: Air Ride or Premium Air Ride
Instructional seat Optional
Display PowrReverser™: Automotive-style light-emitting diode (LED) instrument cluster
PowrQuad™ PLUS/Powr8™: Digital Dash Display with three liquid crystal displays (LCDs)
Radio Optional
dB(A) rating 78 dBA
Wheelbase 2WD and MFWD: 2350 mm
92.5 in.
Overall length OOS: 4081 mm
160 in.
Cab: 4089 mm
161 in.
Approximate shipping weight, Open;Cab 2WD OOS: 3700 kg
8140 lb
2WD Cab: 3900 kg
8580 lb
MFWD OOS: 3975 kg
8765 lb
MFWD Cab: 4175 kg
9185 lb
Base machine weight PowrReverser™: 3764 kg (8,298 lb)
PowrQuad™ PLUS/Powr8™: 3964 kg (8,740 lb)
Fuel tank Open: 142.7 L
37.7 U.S. gal.
165.4 L
43.7 U.S. gal.
Diesel exhaust fluid (DEF) tank 12.0 L
3.17 U.S. gal.
Guidance Optional: AutoTrac™ with AutoTrac Basic
AutoTrac ready Optional with PowrQuad™ PLUS/Powr8™ models
ISOBUS ready Optional with PowrQuad™ PLUS/Powr8™ models
Country of manufacture Pune, India
Date collected 6-Jan-2023
