Description
New 20 foot cutting width has a newly designed cutter chamber.
Home / Equipment / Commercial Mower / Rotary Cutters | FC20R Flex Wing Rotary Cutter

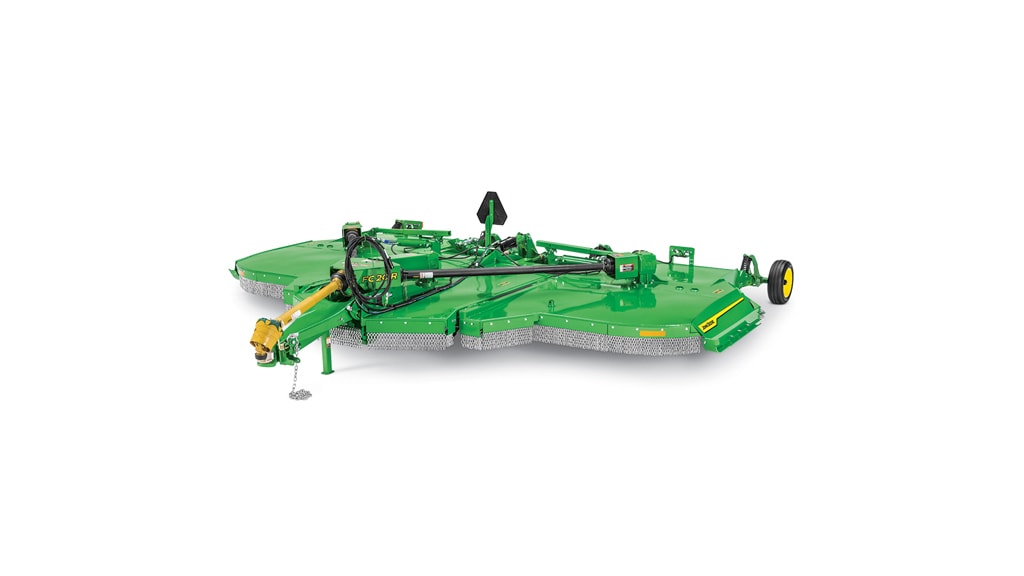

Rotary Cutters | FC20R Flex Wing Rotary Cutter
Commercial MowerJohn Deere
#fc20r
Characteristics
- 20 ft. cutting width
- 540 or 1000 PTO RPM
- 4-inch cutting capacity
- Rear wheel torsional suspension
SKU: fc20r
Categories: Commercial Mower, Equipment, Mowers and shredders, Rotary Cutters
Specifications
| Cutting width |
6.1 m 20 ft |
| Cutting capacity (diameter) |
101.6 mm 4 in. |
| Tractor PTO HP range |
56 kW 75 hp |
| Transport width | At wing wheels: 3.4 m 11.1 ft |
| Deck thickness |
7 gauge - 4.55 mm 0.18 in. |
| Side skirt thickness |
3 gauge - 6 mm 0.24 in. |
| Approx. weight |
3466 kg 7643 lb |
| Drivelines - Size - Main | CV ASAE Category 6, splined telescoping profiles |
| Blade tip speed - 540 rpm - 1000 rpm |
540 rpm: 81.7 m/s 268.1 fps 1000 rpm: 83 m/s 272.4 fps |
| Gearboxes | 5-year warranty |
| Cutting width |
6.1 m 20 ft |
| Cutting height |
25.4-406.4 mm 1-16 in. May vary with suspended tongue |
| Cutting capacity (diameter) |
101.6 mm 4 in. |
| Cutting chamber depth |
254 mm 10 in. |
| Tractor PTO HP range |
56 kW 75 hp |
| Tractor PTO | 540 or 1,000 rpm |
| Type |
Standard self-level hitch clevis with 57.2-cm (22.5-in.) narrow-profile width Ball-type self-level hitch with 57.2-cm (22.5-in.) narrow-profile width and 2-degree rotation freedom to each side |
| Jack stand | Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering |
| Transport width | At wing wheels: 3.4 m 11.1 ft |
| Overall width |
6.2 m 20.3 ft |
| Overall length |
5.3 m 17.3 ft |
| Deck shape | Easy-clean smooth top deck |
| Deck type | Single |
| Deck thickness |
7 gauge - 4.55 mm 0.18 in. |
| Side skirt thickness |
3 gauge - 6 mm 0.24 in. |
| Hinges | Intermittent cast steel segments - maintenance-free single 2.5-cm (1-in.) diameter full-length hinge pin |
| Approx. weight |
3466 kg 7643 lb |
| Size |
Main CV ASAE Category 6, splined telescoping profiles Connecting ASAE Category 5, splined telescoping profiles |
| Protection |
Connecting No-seize, slip-clutch driveline |
| Number | Four |
| HP rating |
Transfer Continuous: 186 kW 250 hp Peak: 224 kW 300 hp Center Continuous: 93 kW 125 hp Peak: 168 kW 225 hp Outer Continuous: 93 kW 125 hp Peak: 168 kW 225 hp |
| Thickness |
13 mm 0.5 in. |
| Width |
102 mm 4 in. |
| Type | Suction |
| Overlap |
152 mm 6 in. |
| Blade tip speed |
540 rpm 81.7 m/s 268.1 fps 1000 rpm 83 m/s 272.4 fps |
| Blade holder |
Type Round stump jumper and standard deck rings for maximum protection of blades and blade carrier against obstruction damage |
| Wing lift | Independent; includes spring assist unfolding |
| Wing flex |
For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
| Type |
Option 1 5-bolt, laminated: 21x5.25x9 Option 2 5-bolt, 24PR severe-duty ag: 26x9x14.5 5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5 |
| Suspension | Torsional suspension |
| Row width adjustment | Yes |
| Wing-leveling adjustment | Easy adjust turnbuckle with bearing |
| Front |
Single-row chain guard Optional: double row |
| Rear |
Single-row chain guard Optional: double row |
| Gearboxes | 5 years |
