Description
Completely redesigned from the ground up with the latest advances in technology, the smartest cab in its class, higher application rates and smooth-running comfort, the 408R Sprayer can take your productivity to whole new levels.
Home / Equipment / Self-Propelled Sprayers | 408R Sprayer

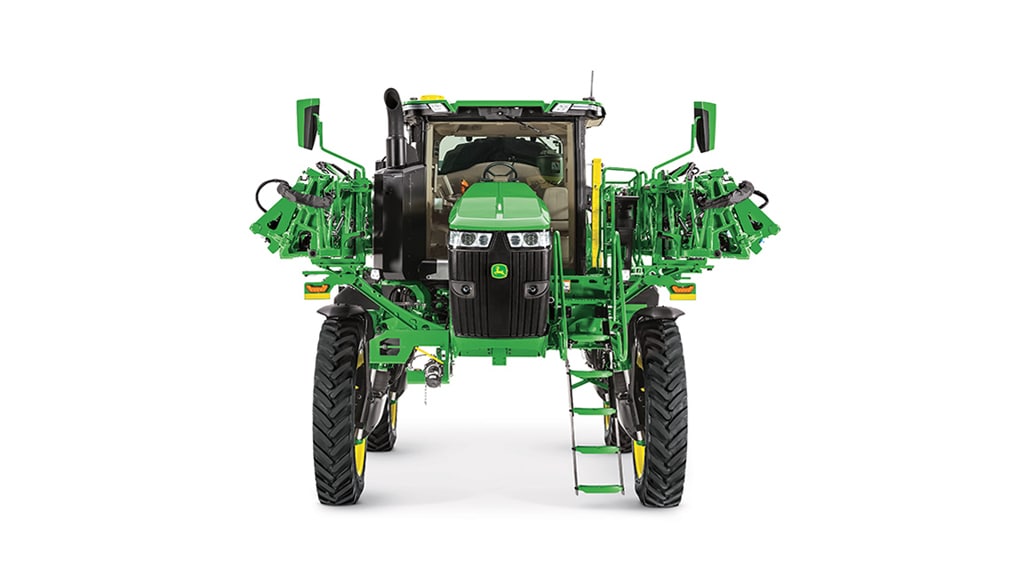

Self-Propelled Sprayers | 408R Sprayer
EquipmentJohn Deere
#408rxn
Characteristics
- 800-US gallon (3,028 L) tank
- Up to 132-foot (40.23 m) boom
- 280 hp, 6.8 L engine
- 48.3 km/h transport speed
SKU: 408rxn
Categories: 400 and 600 Series Sprayers, Equipment, Sprayers & Applicators
Specifications
| Rated engine power |
206 kW 280 hp |
| Maximum engine power |
224 kW 300 hp |
| Solution system - Capacity |
3028 L 800 gal. |
| Rinse tank capacity |
454.2 L 120 gal. |
| Boom length options/Material |
18.3/27.4, 18.3/30.5, 22/36.6, or 22/40.2 m 60/90, 60/100, 72/120, or 72/132 ft Boom material: Steel or carbon fiber |
| Spray speed range |
0 to 32.2 km/h 0 to 20 mph |
| Transport speed, maximum |
48.3 km/h 30 mph |
| Suspension | Dual-strut independent wheel air-ride suspension |
| Crop clearance with standard tires |
152 cm 60 in. |
| Total weight (empty solution tank) |
13,757 kg 30,328 lb *Includes: 30.5-m (100-ft) steel boom, pressure recirculation, ExactApply™, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options. |
| Rated engine power |
209 kW 280 hp |
| Maximum engine power |
224 kW 300 hp |
| Emissions | Final Tier 4 (FT4) |
| Number of cylinders | Six |
| Displacement |
6.8 L 415 cu in. |
| Alternator | 250 amp |
| Fuel tank capacity |
485.2 L 128.2 gal. |
| Diesel exhaust fluid (DEF) tank capacity |
29.5 L 7.8 gal. |
| Capacity |
3028 L 800 gal. |
| Tank material | Stainless steel or polyethylene |
| Rinse tank capacity |
454.2 L 120 gal. |
| Quick fill size |
7.6 cm 3 in. |
| Automatic section control | John Deere Section Control (optional) |
| Solution system control |
Manual Optional: Automatic |
| Fill location | Side fill, front fill (optional) |
| Chemical injection method |
Dual-pump direct injection Optional: up to 511 L 135 U.S. gal. |
| Chemical eductor | Stainless steel (optional) |
| Chemical eductor capacity (size) |
32 L 8.5 gal. |
| Flow meter size |
5.1 cm 2 in. |
| Suction strainer | 20 mesh |
| Pressure strainer | 50 mesh |
| Boom strainer | 80 mesh |
| Boom length options |
18.3/27.4, 18.3/30.5, 22/36.6, or 22/40.2 m 60/90, 60/100, 72/120, or 72/132 ft |
| Automatic boom height | BoomTrac Pro 2 - five sensor (optional) |
| Plumbing material |
Stainless steel Optional: Polyethylene |
| Boom Material | Steel or carbon fiber |
| Ground height adjustment |
50 to 245 cm 19.6 to 96.5 in. |
| Breakaway width |
Stainless-steel boom: 3.3 m 10.8 ft Carbon fiber boom: 3.7 m 12.1 ft |
| Boom sections |
13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft |
| Nozzle spacings |
38.1 or 50.8 cm 15 or 20 in. |
| Type | Hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Electrohydraulic |
| Hydraulic reservoir capacity |
98 L 26 gal. |
| Spray speed range |
0 to 32.2 km/h 0 to 20 mph |
| Transport speed, maximum |
48.3 km/h 30 mph |
| Dry compatible |
Yes: 5.7 m3 200 cu ft |
| Suspension | Dual-strut independent wheel air-ride suspension |
| Crop clearance with standard tires |
152 cm 60 in. |
| Front tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Rear tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Flotation tires | 520/85R38 or 620/70R38 (field installed only) |
| Hydraulic tread adjust | Standard |
| Wheel tread spacing |
305 to 406 cm 120 to 160 in. |
| Wheel base |
430 cm 169.3 in. |
| Turning radius |
8.7 m 28.5 ft |
| Parking brake | Spring-engaged, hydraulically disengaged wet disk pack |
| Primary brakes | Hydrostatic |
| Ladder raise/lower | Automatic |
| Total weight (empty solution tank) |
30,328 kg *Includes: 30.5-m (100-ft) steel boom, pressure recirculation, ExactApply, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options. |
| Air compressor | Standard: Onboard air |
| Foam marker capacity |
Air injection foamer: 5.7 L 1.5 gal. |
| Date collected | 1-Mar-2021 |
