Description
Q800 QuikTrak™ E Series mowers are compact and nimble for tight areas like gates, trees, and landscape beds. They feature superior maneuverability and take less space on work trailers. Easy to maintain and operate.
Home / Equipment / Commercial Mower / QuikTrak™ Commercial Stand-On Mowers /

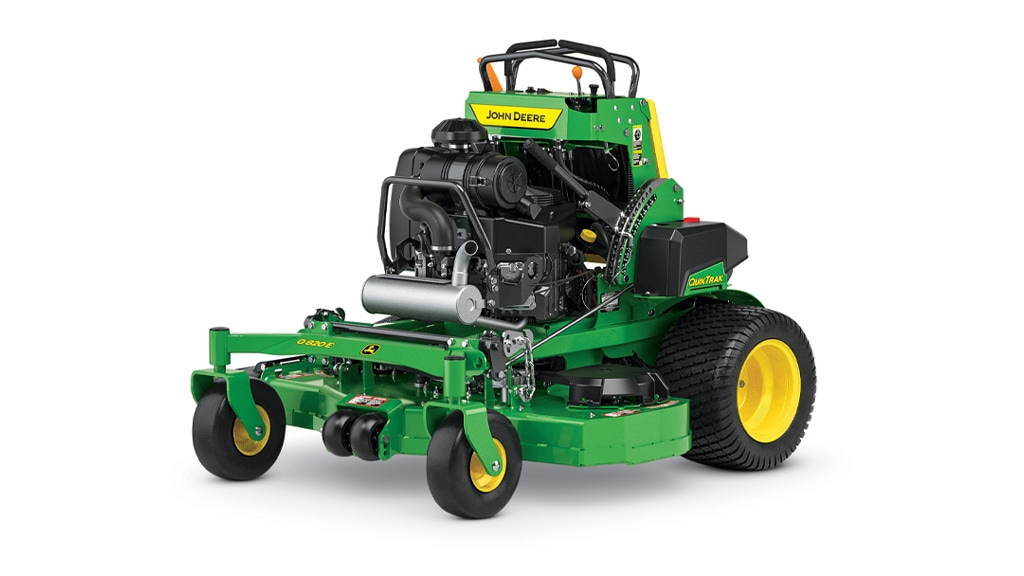

Commercial Mowers | QuikTrak™ Q820E Stand-On Mowers
QuikTrak™ Commercial Stand-On MowersJohn Deere
#820e_tc
Characteristics
- 23.5-hp (17.5-kW)
- 48" deck, 7-gauge fabricated deck
- Mow up to 13 km/h
- Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation**
Specifications
| Engine Manufacturer/model | FX730V |
| Engine power |
Gross at 3,600 rpm: 23.5 hp 17.5 kW |
| Fuel tank capacity |
5.6 U.S. gal. 21.2 L |
| Mower deck size | 48-in. (122-cm) fabricated |
| Blade tip speed |
Approximately 18,000 fpm 5486 m/min |
| Transmission | Separate hydraulic pumps and motors |
| Speed range |
0-8 mph 0-12.9 km/h |
| Drive wheels | 18x10.5-10 pneumatic |
| Caster wheels | 11x4-5 |
| Warranty |
36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
| Manufacturer/Model | FX730V |
| Power |
Gross at 3,600 rpm: 23.5 hp 17.5 kW |
| Displacement |
44.3 cu in. 726 cc |
| Cylinders | Two, V-twin |
| Crankcase capacity |
With filter, 2.2 qt 2.1 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air, with integrated clean out ports |
| Air cleaner | Heavy-duty canister type with safety element |
| Fuel type | Gasoline |
| Fuel tank capacity |
5.6 U.S. gal. 21.2 L |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | At 3,600 rpm 20A |
| Battery voltage | 12 V |
| Cold cranking amp | 300 CCA |
| Hour meter | Digital |
| Operator presence starting system | Yes |
| Transmission | Separate hydraulic pumps and motors |
| Hydraulic pumps |
0.61 cu in. 10 cc |
| Wheel motors |
12 cu in. 196 cc |
| Travel speed |
Speed range 0-8 mph 0-12.9 km/h Forward Infinite, 0-8 mph Infinite, 0-12.9 km/h Reverse Infinite, 0-3.5 mph Infinite, 0-5.6 km/h |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity |
With filter, dry, 5 qt 4.7 L |
| Hydraulic oil cooler | Radiator core |
| Filter | Spin-on replaceable |
| Warranty |
36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
| Drive wheels | 18x10.5-10 pneumatic |
| Load rating | 4 PR |
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Tire engagement |
| Park brake actuation | Hand lever |
| Type |
Electro-magnetic with brake, 125 lb-ft 169 Nm |
| Drive | V-belt |
| Size | 48-in. (122-cm) fabricated |
| Deck construction | Fabricated steel, floating mount system |
| Deck thickness |
7 gauge 0.180 in. 4.6 mm |
| Discharge | Side |
| Height-of-cut range |
Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
| Cutting width | 48-in. (122-cm) fabricated |
| Thickness |
0.25 in. 0.64 cm |
| Blade tip speed |
Approximately 18,000 fpm 5486 m/min |
| Number | Three |
| Caster wheel type | Flat free |
| Caster wheels | 11x4-5 |
| Front anti-scalp rollers | Double-captured center |
| Length |
59.75 in. 151.8 cm |
| Width |
With chute down, 62 in. 157 cm |
| Height |
46 in. 117 cm |
| Weight |
800 lb 363 kg |
| Date collected | 28-Aug-2023 |
