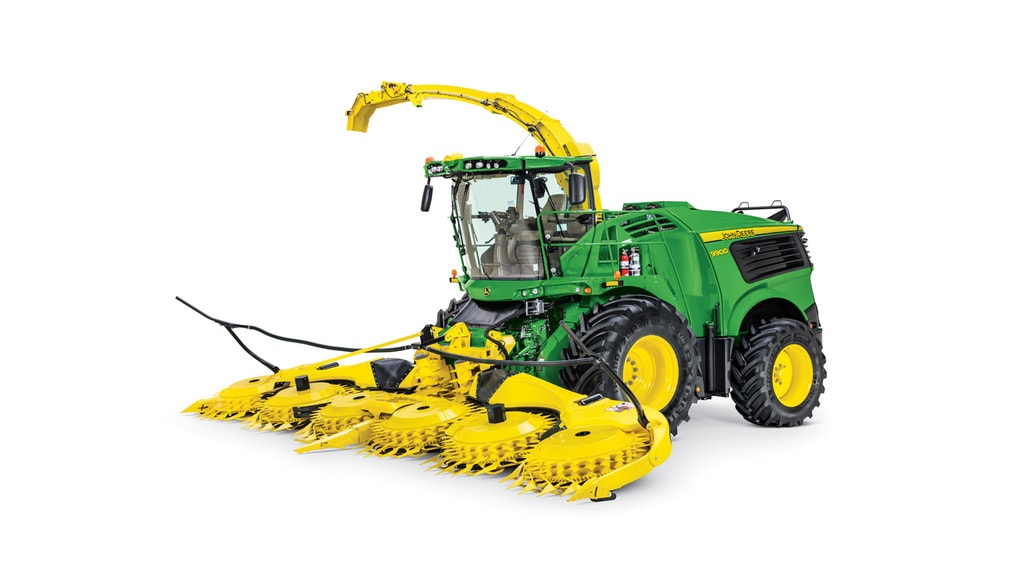

9000 Series Self-Propelled Forage Harvesters | 9900
EquipmentJohn Deere
#9900_z
Characteristics
- 956 hp, 24L Liebherr V12 engine
- Driveline designed to deliver optimal crop flow when the engine is operating in its efficiency sweet spot
- The ProStream crop flow designed with extra heavy-duty components for high horsepower and more throughput than ever before
Specifications
| Maximum power |
At 1800 rpm (ECE R120): 713 kW 970 PS / 956 hp |
| Engine |
Type Liebherr® Exhaust emission regulation compliancy: Final Tier 4 / EU Stage V Displacement 24.2 L 1476.8 cu in. Model D9512 A7 04 Cylinders V 12 |
| Fuel system | Common rail plus four valves |
| Fuel tank capacity |
1,500 L 396.3 U.S. gal. |
| DEF tank capacity ( for FT4 or EU Stage V emission level) |
103 L 23.8 U.S. gal. |
| Maximum power |
At 1800 rpm (ECE R120): 713 kW 970 PS / 956 hp |
| Fuel tank capacity |
1500 L 396.3 U.S. gal. |
| DEF tank capacity ( for FT4 or EU Stage V emission level) |
103 L 23.8 U.S. gal. |
| Type |
Liebherr Exhaust emission regulation compliancy: Final Tier 4 / EU Stage V |
| Model | D9512 A7 04 |
| Displacement |
24.2 L 1476.8 cu in. |
| Cylinders | V 12 |
| Fuel system | Common rail plus four valves |
| Air compressor | Base |
| Cooling fan drive | Direct |
| Ground drive |
ProDrive™ system, autoshift transmission, differential lock (automatic and manual), automatic wet brake system Engine rpm on road: 1200-1800 rpm |
| Hydraulics | Load sensing |
| Main clutch | Dry clutch |
| Number of discs | Two discs |
| Main driveband | Reinforced with Kevlar® inserts |
| Belt tensioning | Active, hydraulic pressure |
| Main driveband, polybelt belts | Nine grooves |
| Type/voltage | 12 / 24 V |
| Batteries/battery quantity/capacity | 3 x 174 amp-hr |
| Alternator |
12 V - 200 amp 24 V - 140 amp |
| Hydraulic system capacity |
50 L 13.2 U.S. gal. |
| Differential lock | Manual and automatic |
| Maximum transport speed |
ProDrive system: 20/25/30/40 km/h 12.4 / 15.5 / 18.6 / 24.9 mph |
| Rear axle type | Hydromechanical 4WD |
| Automatic wet brake system | Standard |
| Engine speed management | Standard |
| Tilt and extend steering column | Standard |
| Air conditioning and heater | Standard: ClimaTrak™ control |
| Cool box | Optional |
| Trainee seat | Standard |
| Hectare counter | Standard |
| Operator information system | Cornerpost display |
| CAN bus electronics | Standard |
| Operator's seat | Standard: Air-suspension seat |
| Panoramic view windows | Standard |
| Side window wiper |
Rear and side window wiper optional Parallel-type windscreen wiper |
| Electric adjust and heated | Optional on rearview mirrors |
| Rearview mirrors | Standard |
| Yield monitoring | Harvest Monitor™ optional |
| Documentation | Harvest Doc™ optional |
| Crop analysis | HarvestLab™ 3000 optional |
| Length-of-cut control based on crop parameter |
Standard: Infinitely variable length-of-cut (IVLOC™) Optional: AutoLoc™ system - use with HarvestLab |
| Assisted steering systems | Optional: AutoTrac™, Manual RowSense™, AutoTrac RowSense, Machine Sync |
| Width | Wide body channel |
| Crop flow components | Low-friction crop flow concept |
| Infinitely variable header drive | Standard |
| Lateral pivoting frame | Standard |
| Multicoupler | Standard |
| Auto PTO coupler | Optional |
| Header drive |
Base: Heavy-duty gearbox (i=3.75); pump/motor displacement: 85/80 cc Optional: Extra heavy-duty gearbox (i=4.31); pump/motor displacement: 110/90 cc |
| Header height control | Advanced header control (AHC) optional |
| Grass pickups (transport width) |
3, 4, 4.5 m 9.8, 13.1, 14.8 ft |
| Maize headers |
8, 10 or 12 rows Working width: 6, 7.5, or 9 m 19.7, 24.6 , or 29.5 ft |
| Feed roll frame opening | Swing away, 37-45 degree (angle) |
| Number | Four |
| Metal detector | Standard |
| Stone detector | Optional |
| Width, front |
830 mm 32.7 in. |
| Standard feedroll drive |
Hydro feedroll drive IVLOC Infinitely variable header drive speed |
| Type | Dura-Drum™ cutterhead |
| Knife drum width |
850 mm 33.5 in. |
| Knife drum diameter |
670 mm 26.4 in. |
| Speed at rated engine speed |
Standard - 1170 rpm Optional - 1350 rpm |
| Knife types available (crop) |
Straight - grass Curved - corn |
| Shear bar options | Grass, corn, Dura Line™ corn, Dura Line Plus |
| Reverse rotation | Yes |
| Automatic from cab | Yes, remote from cab |
| Sharpening modes | Grinding and finishing |
| Type | John Deere XStream KP |
| Quick-change | Quick kernel processor - swing in/swing out |
| Quick KP removal | Optional crane with remote-controlled electric hoist |
| Housing | Heavy-duty KP housing |
| Lubrication | Pressurized oil |
| Roll diameter |
250 mm 9.8 in. |
| Maize - Dura Line sawtooth or XCut roll teeth number (speed differential) | 110/145 (50 percent) |
| Whole crop - Dura Line XCut roll teeth number (speed differential) | 145/165 (50 percent) |
| Rotor diameter/housing width |
560 / 620 mm 22.86 / 24.41 in. |
| Number of blades | 10 |
| Speed (option) | 1890 rpm |
| Rotation, degrees | 210 degree (angle) |
| Hydraulic height position |
Standard: Hydraulic raise and lower Optional: Automatic spout positioning |
| Double-cap deflection | Standard |
| Reach from center line (Optional) |
6 or 8 row: 4.73 m 15.5 ft 10 row: 5.87 m 19.3 ft 12 row: 6.71 m 22 ft |
| Working height (maximum) |
Height to spout: 6.6 m 21.65 ft |
| Rotary radiator screen cleaner | Standard |
| Automatic lubrication system | Standard: AutoLube |
| Engine oil and filter change duration | 1000 hours |
| Transport length (without header) |
6.6 m 21.7 ft |
| Transport width (without header) |
3.2-3.8 m 10.5-12.5 ft |
| Transport height (to cab roof) |
Below 4 m 13.12 ft |
