Description
Z700 Series zero-turn mowers provide the ultimate in comfort with the ability to mow in tough terrain, featuring models with speeds up to 16 km/h and a large 8-US gallon fuel tank for mowing more, stopping less.
Home / Equipment / Commercial Mower / Z700 Series ZTrak™ Mowers | Z735M 48-, 54-, or 60-in. Deck
No payment or interest for 9 months

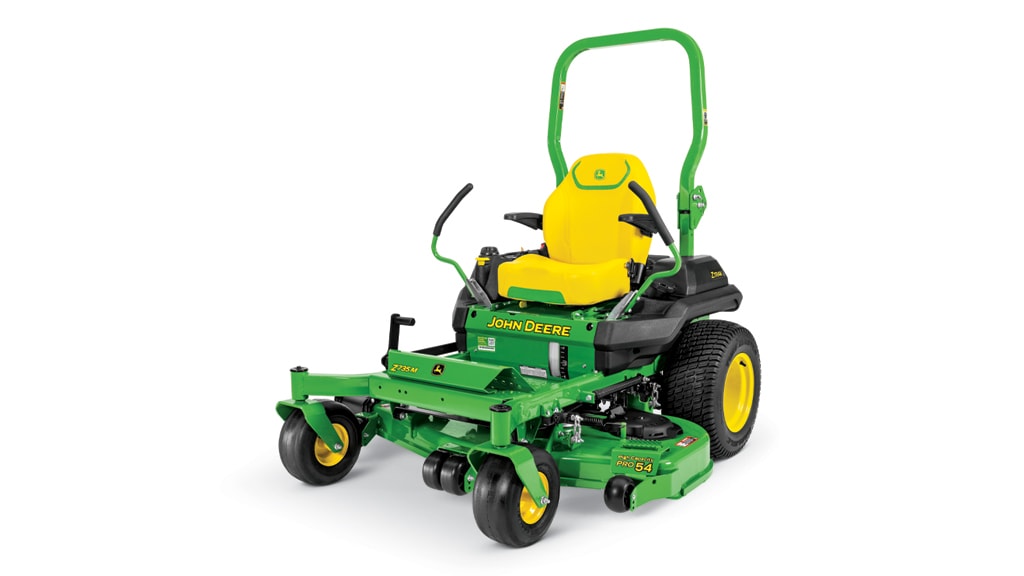

Z700 Series ZTrak™ Mowers | Z735M 48-, 54-, or 60-in. Deck
Commercial MowerJohn Deere
#735m_tc
Characteristics
- 25-hp (18.6 kW)*, 810 cc engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1-5 inches
SKU: 735m_tc
Categories: Commercial Mower, Equipment, Z700 Series Zero-Turn Mowers, Zero Turn Mowers
Tag: No payment or interest for 9 months
Specifications
| Engine power |
25 hp 18.6 kW |
| Engine model number | HTR810 |
| Forward speed |
0-9.5 mph 0-15.3 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires |
23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Seat back height |
High back with adjustable armrests, 22.5 in. 57.1 cm |
| Width of cut |
48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment |
| Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power |
25 hp 18.6 kW |
| Model number | HTR810 |
| Displacement |
49.4 cu in. 810 cc |
| Cylinders | V-twin |
| Lubrication |
Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery |
12 V 340 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity |
8 U.S. gal. 30.2 L |
| Fuel gauge | Fuel level sight line |
| Dual hydros | Hydro-gear ZT3200 with 1-in. (2.54-cm) axles |
| Forward speed |
0-9.5 mph 0-15.3 km/h |
| Reverse speed |
0-4 mph 0-6.4 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster tires | 13x6.5-6 |
| Front caster bearings | Sealed ball bearings |
| Drive tires |
23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Seat back height |
High back with adjustable armrests, 22.5 in. 57.1 cm |
| Fore-aft adjustment |
While seated, +/- 2 in. 5.08 cm |
| Seat suspension | Two four-position springs with ComfortGlide™ fore/aft suspension |
| Type | Spring assisted foot lift |
| Mower cut height |
1.5-5 in. 3.8-12.7 cm |
| Cut height increments |
0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Width of cut |
48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Type | High-capacity (HC) PRO side discharge |
| Mower deck material |
9 gauge 0.150 in. 3.8 mm |
| Mower drive system | V-belt |
| Type |
Electric, 125 lb-ft 169 Nm |
| Drive | V-belt |
| Wheelbase |
49.9 in. 126.7 cm |
| Overall length |
82 in. 208.4 cm |
| Width without mower |
48.6 in. 123.5 cm |
| Width with mower |
48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
| Width with mower (deflector raised for storage) |
48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
| Height |
ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
| Weight |
With mower and fuel, 48 HC, 950 lb 431 kg With mower and fuel, 54 HC, 965 lb 437 kg With mower and fuel, 60 HC, 990 lb 449 kg |
| Rollover protective structure (ROPS) | Yes |
| Slope operating limit | 15 degrees; 10 degrees with MCS |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
| Note 1 | Flip-up and adjustable foot platform for easy service access |
| Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl attachment |
| Rubber floor mat | Optional |
| Light kit | Optional LED work and beacon lights |
| Material collection system |
48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L |
| Date collected | 1-Sept-2022 |
